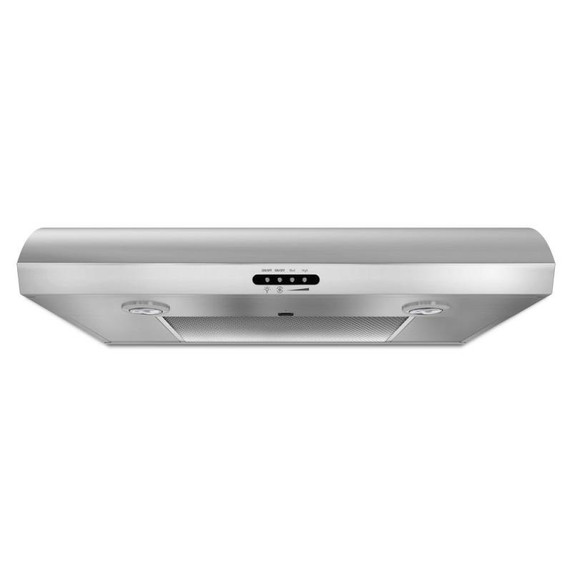

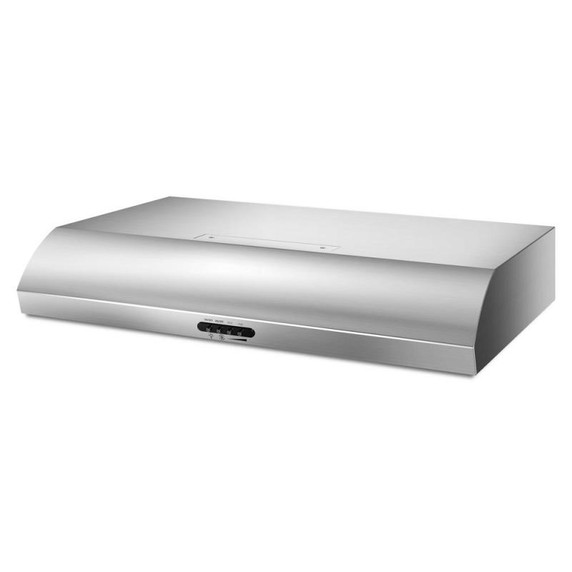

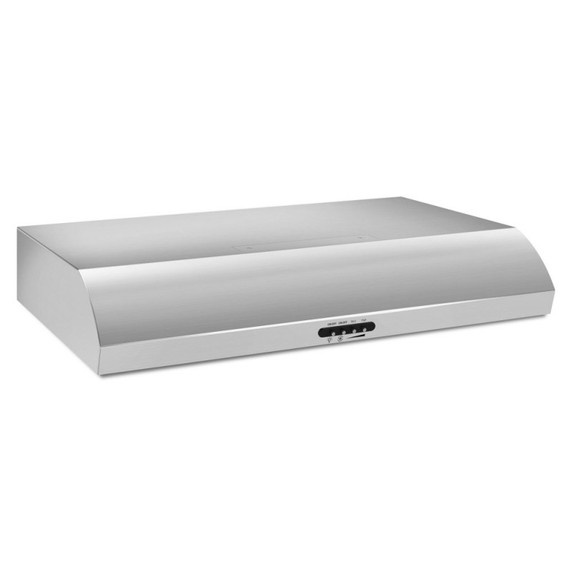

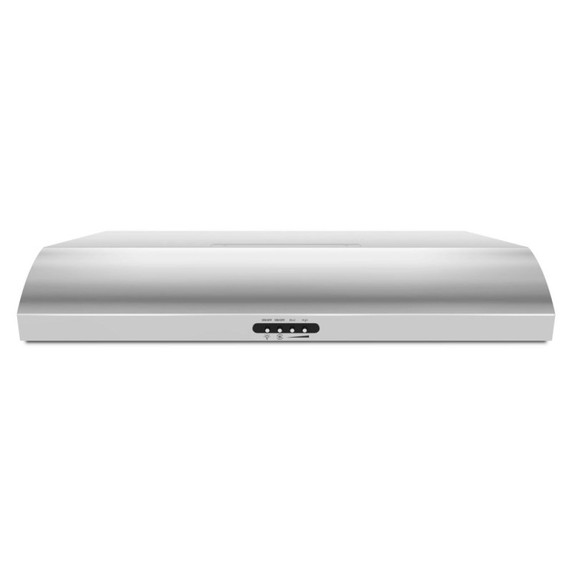

30" Range Hood with the FIT System UXT5230BDS
Grease filterThe grease filter helps trap unwanted grease and helps remove odors.
FIT SystemThe FIT system eliminates measuring, cutting and trim for a perfect fit every time.
Halogen LightingHalogen task lighting makes it easy to see what you’re cooking with bulbs that make food look as appealing as it tastes.
Recirculation (Non-Vented/Duct-Free)By not having to connect to outside air, this hood can be installed almost anywhere, including a condo. Recirculation happens through filters to help keep the air fresh.
Flexible ventilation optionsA convertible design lets you install almost anywhere. When external ventilation isn’t an option, the hood’s fan will recirculate air through filters that capture grease and cooking odors to help keep the kitchen clean.
Controls
Control TypeManual
Specifications
Country Of OriginMexico
Optional AccessoriesW10356918
Extended Service Plan ParentEW02IW1Y, EW02IW2Y, EW02IW4Y
Product To Product PairsWCE77US0HB, WCI55US0JS, YWEE745H0LZ, YWEE515S0LB, YWEE515S0LV, MEC8830HS, YWGE745C0FS, YWEE515S0LW, WCE77US0HS, WCE55US0HB, YWFC315S0JW, WCE55US0HS, YWFC315S0JS, YMET8800FZ, YWFE745H0FH, YWFC150M0JW, YWFC150M0JB, MGT8800FZ, YWEE750H0HZ, YWEE750H0HV, YWFE745H0FS, MEC8830HB, YWEE750H0HB, YWEE515S0LS, YWEEA25H0HZ, MGC7430DS, WCE97US0KS, WEG515S0LS, YWEE750H0HW, WEG515S0LV, YWFE515S0JS, WCE97US0KB, WCI55US0JB
Features
Task LightingYes
Task Light TypeHalogen
Btu Threshold50 K
Certifications
ULYes
Description
Size In30
Hood TypeUnder-the-Cabinet
Ventilation System
VentingExterior or Recirculating
Duct Outlet Size In3.25 W x 10 H
Duct DirectionVertical or Horizontal
FiltersCharcoal Odor Removing Filter
Cfm Motor Class560
Sound Max Speed Sones7.5
Carton Depth20.75"
Carton Height7.0"
Carton Width31.75"

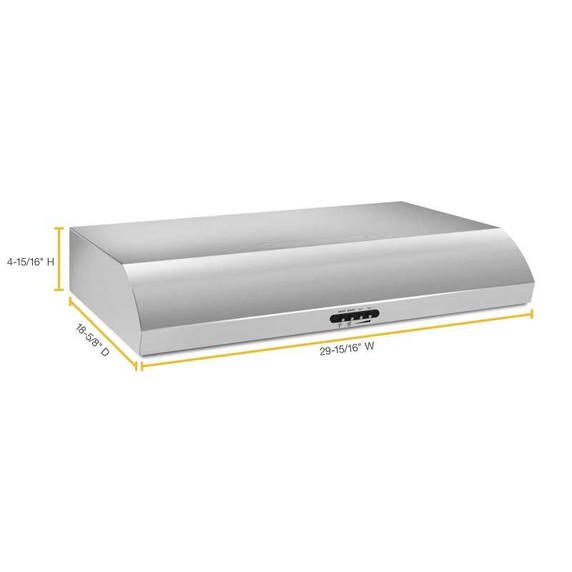

Depth18.63"
Gross Weight17.0 lbs.
Height4.94"
Width29.94"
