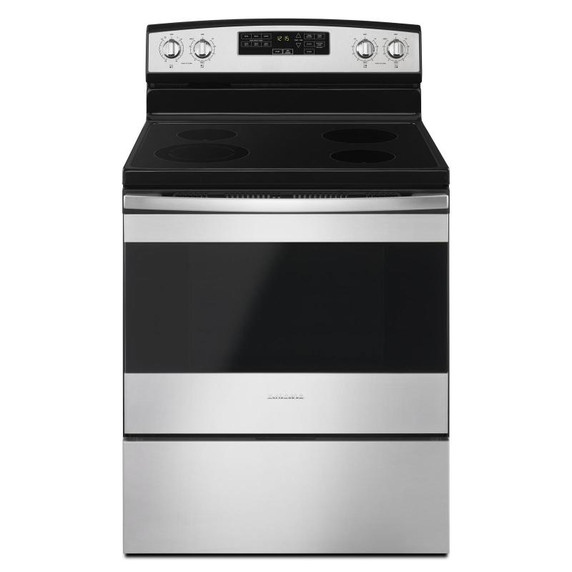

30-inch Amana® Electric Range with Self-Clean Option YAER6603SMS
30-inch Amana® Electric Range with Self-Clean Option YAER6603SMS
This product has Extended Service Plans available
Large Oven Capacity
(4.8 Cu. Ft.)Large Oven Capacity gives you the space you need to make dinner and dessert at the same time.
Versatile CooktopOur Versatile Cooktop with multiple element options provides up to 3,000 watts on the largest burner to help you cook more of your favorites at the same time.
Bake Assist TempsBake Assist Temps offer preset temperature settings to make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.

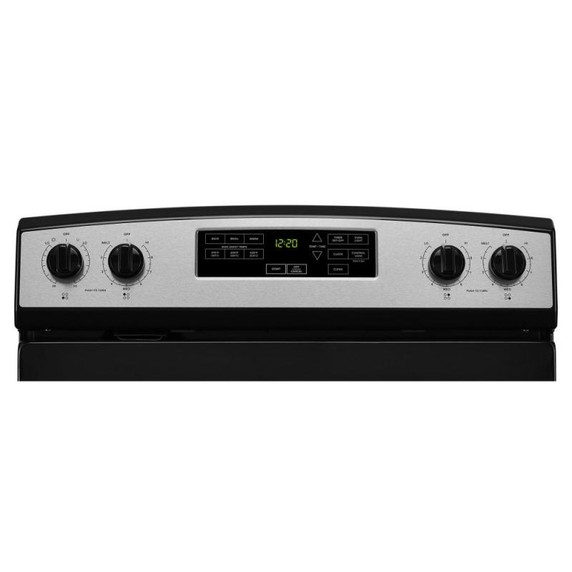

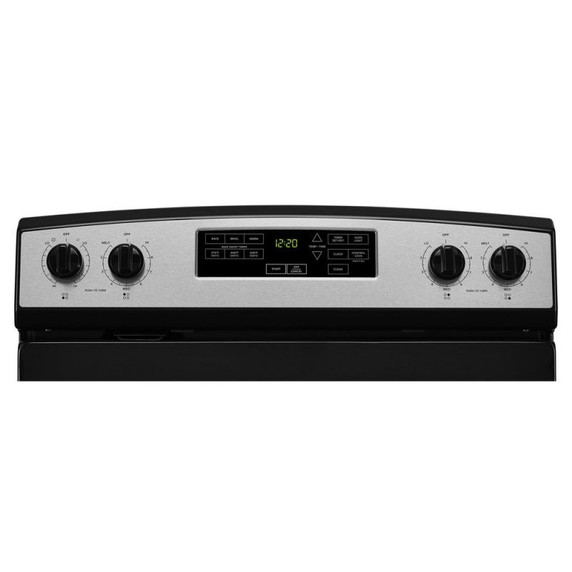

Easy Touch Electronic Controls PlusQuickly select bake or broil temperatures with these extra-large and easy-to-read Easy Touch Electronic Controls Plus.
Temp Assure™ Cooking SystemTemp Assure™ Cooking System distributes heat throughout the entire oven to deliver delicious results.
Extra-Large Oven WindowSee and savor. The Extra-Large Oven Window provides a wide view to let you check on food without having to open the oven door.
Storage DrawerThis Storage Drawer comes with plenty of space to put those pots and pans out of sight and out of mind.
Warm HoldUse the Custom Broil setting to broil in five-degree increments to melt cheese, sear steak or toast those buns with more precision.
Oven LockoutOven Lockout is a safety feature that locks your oven and its controls to help protect against accidental use.
Custom BroilUse the Custom Broil setting to broil in five-degree increments to melt cheese, sear steak or toast those buns with more precision.
Self-Clean OptionThere's no need to scrape and scrub with the Self-Clean Option. Use this setting to let your range do the dirty work for you in just two to four hours.
Contemporary DesignWith clean lines and modern finishes, our line of free-standing ranges lets you easily choose the features and design details that best fit your budget and lifestyle
Certifications
ULYes
Energy Rating Kwh Year532
Compatibility
Connectivity
Works With
Controls
Control TypeKnobs
Knob ColorBlack
Knob TypePlastic
Specifications
Country Of OriginUSA
Extended Service Plan ParentEW05IW1Y, EW05IW2Y, EW05IW4Y
Product To Product Pairs
Dishwasher SafeNo
Electrical
Amps40
Power Cord IncludedYes
Volts120
Exterior
Handle ColorStainless Steel
Handle MaterialMetal
Handle TypeReach Through Handle
Door RemovableYes
Drawer TypeStorage Drawer
Description
Size In30
Range TypeFreestanding
Configuration and Overview
Fuel TypeElectric

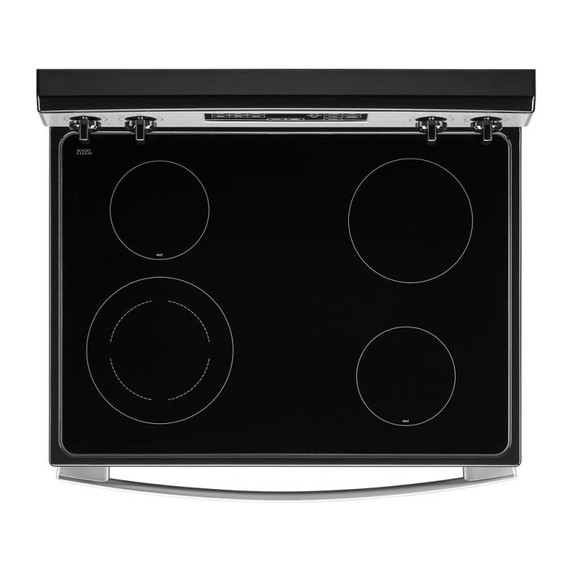

Cooktop Details
Cooktop ConfigurationAll Burners
Cooktop Control LocationBackguard
Cooktop Control TypeKnobs
Cooktop Element StyleCeran
Cooktop Surface ColorBlack
Left Front Element Burner Power3000W/1400W
Left Front Element Burner Size9in./6in.
Left Front Element Burner TypeDual
Left Rear Element Burner Power1200W
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Right Front Element Burner Power1200W
Right Front Element Burner Size6in.
Right Front Element Burner TypeStandard
Right Rear Element Burner Power1800W
Right Rear Element Burner Size8in.
Right Rear Element Burner TypeStandard
Details
Bake Element Power2400W
Broiler Element Power3400W
Broiler LocationTop of Oven
Convection Element TypeNone
Convection FunctionsNo
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementNo
Interior ColorGrey
Number Of Oven Lights1
Number Of Oven Racks2
Number Of Rack Guides5
Oven Cleaning TypeSelf-Clean
Oven Control LocationRear Control
Oven Control TypeElectronic Touch
Oven Cooking SystemThermal
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light Switch LocationOven Control
Oven Light TypeIncandescent
Energy
Annual Energy Usage Kwh532
Features
Automatic Convection Conversion Temperature AdjustNo
GriddleNo
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
Power Outage CompatibleNo
Depth Closed Excluding Handles25.31"
Depth Closed Including Handles27.75"
Depth With Door Open 90 Degree46.69"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Carton Depth29.0"
Carton Height48.75"
Carton Width32.0"
Depth27.75"
Gross Weight152.0 lbs.
Height46.88"
Maximum Height47.88"
Minimum Height46.88"
Width29.88"
Capacity FT3 (cubic feet)4.8
Net Weight135 lbs.
