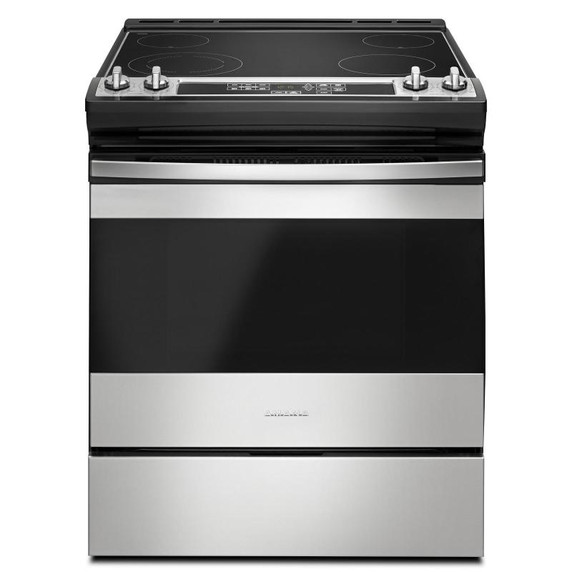

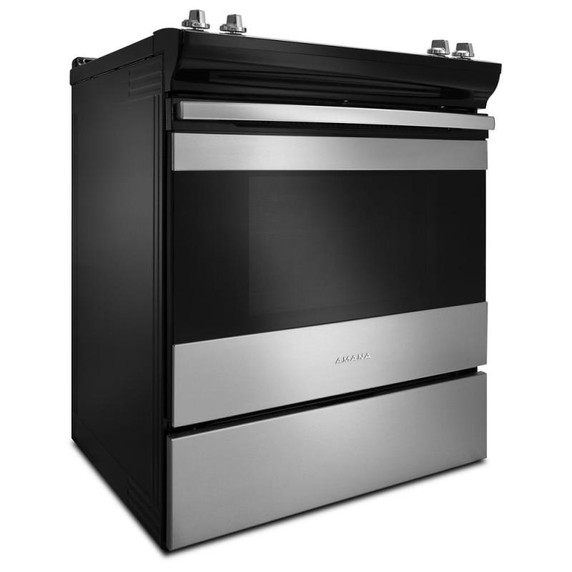

30-inch Amana® Electric Range with Front Console YAES6603SFS
30-inch Amana® Electric Range with Front Console YAES6603SFS
This product has Extended Service Plans available

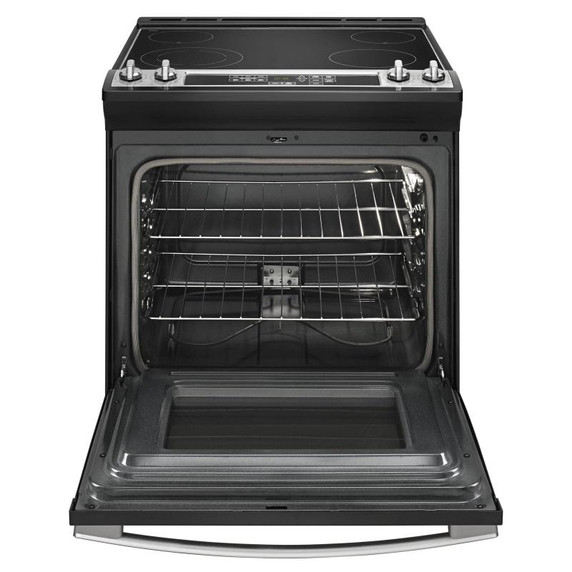

Large Oven Capacity (4.8 cu. ft.)Large Oven Capacity gives you the space you need to make dinner and dessert at the same time.

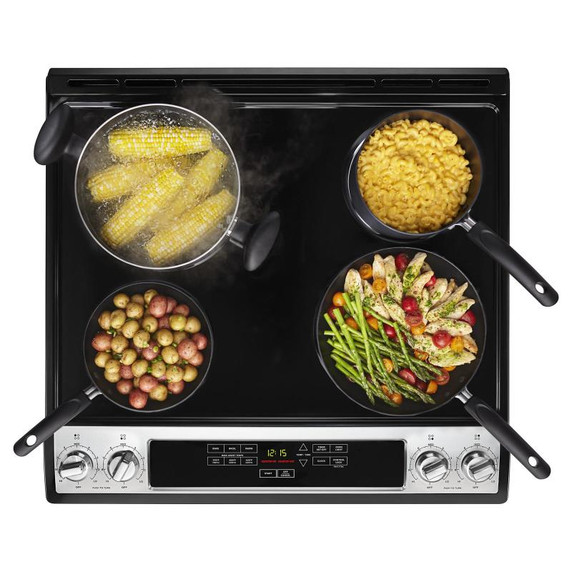

Versatile CooktopOur multiple element options provide up to 3,000 watts to help you cook more of your favorites at the same time.

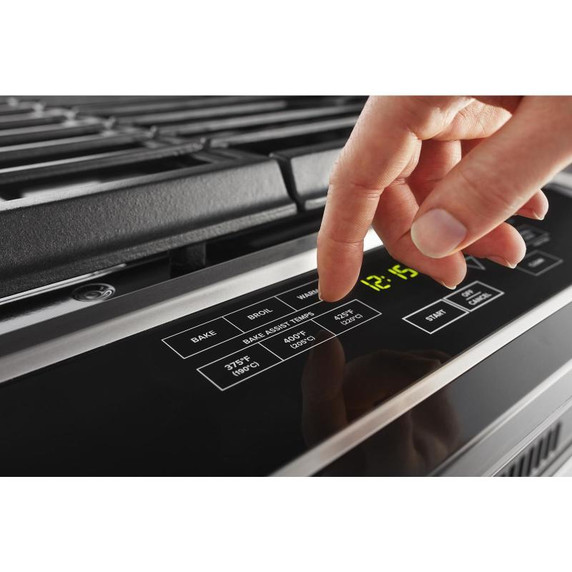

Bake Assist TempsReady. Set. Cook. These preset temperature settings make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.

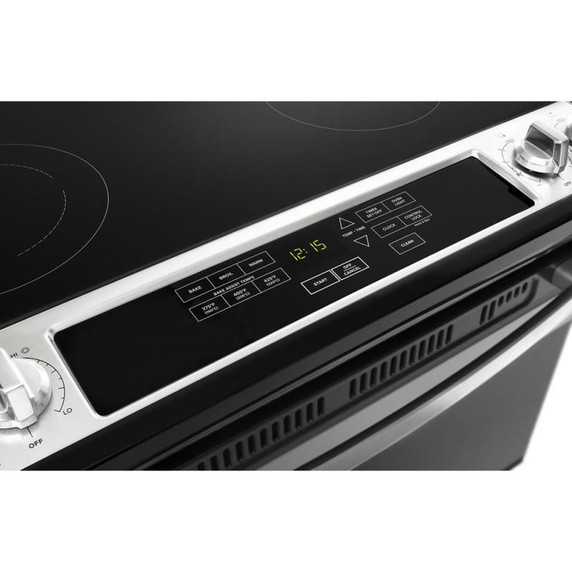

Front ConsoleKeeps all your controls front and centre so that everything is right within reach.
Self Clean OptionThere's no need to scrape and scrub with the Self Clean Option. Use this setting to let your range do the dirty work for you in just two to four hours.

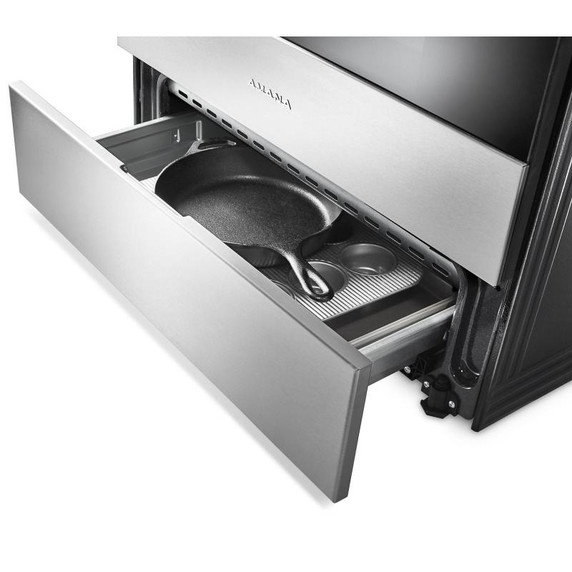

Storage DrawerThis Storage Drawer comes with plenty of space to keep pots and pans out of sight and out of mind.
Certifications
ADA CompliantYes
ULYes
Energy Rating Kwh Year503
Controls
Control TypeKnobs
Knob ColorBlack Stainless
Knob TypePlastic
Specifications
Country Of OriginUSA
Optional AccessoriesW10115773, W10655448, W10655449, W10655450, W10675026, W10675027, W10675028, W10731885, W10731886, W10731887
Extended Service Plan ParentEW06IW1Y, EW06IW2Y, EW06IW4Y
Product To Product Pairs
Dishwasher SafeNo
Electrical
Amps40
Power Cord IncludedNo
Volts120
Hz60
Description
Size In30
Range TypeSlide-in
Configuration and Overview
Fuel TypeElectric
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationSlide-In

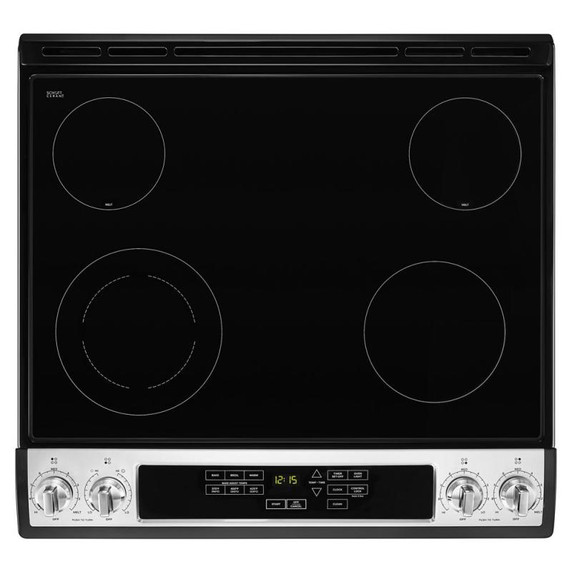

Cooktop Details
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Cooktop Element StyleCeran
Cooktop Surface ColorStainless Steel
Left Front Element Burner Power3000W/1400W
Left Front Element Burner Size9in./6in.
Left Front Element Burner TypeDual
Left Rear Element Burner Power1200W
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard Radiant
Number Of Cooking Element Burners4
Right Front Element Burner Power1200W
Right Front Element Burner Size6in.
Right Front Element Burner TypeStandard Radiant
Right Rear Element Burner Power1800W
Right Rear Element Burner Size8in.
Right Rear Element Burner TypeStandard Radiant
Details
Bake Element Power2400W
Broiler Element Power3400W
Broiler LocationTop of Oven
Convection Element TypeNone
Convection FunctionsNo
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementNo
Interior ColorGrey
Number Of Oven Lights1
Number Of Oven Racks2
Number Of Rack Guides5
Oven Cleaning TypeSelf-Clean
Oven Cooking SystemThermal
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light Switch LocationOven Control
Oven Light TypeIncandescent
Oven Rack TypeStandard (Both)
Energy
Annual Energy Usage Kwh503
Exterior
Door RemovableYes
Drawer TypeStorage Drawer
Features
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
LP ConvertibleNo
Natural Gas ConvertibleNo
Power Outage CompatibleNo
Carton Depth30.5"
Carton Height43.5"
Carton Width31.5"
Depth Closed Excluding Handles28.13"
Depth With Door Open 90 Degree47.38"
Depth28.94"
Gross Weight169.0 lbs.
Maximum Height37.0"
Minimum Height36.0"
Width29.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.13"
Capacity FT3 (cubic feet)4.8
Net Weight149 lbs.
