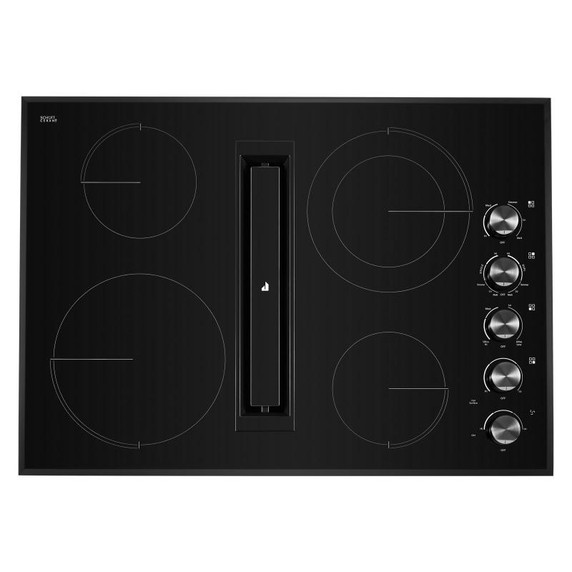

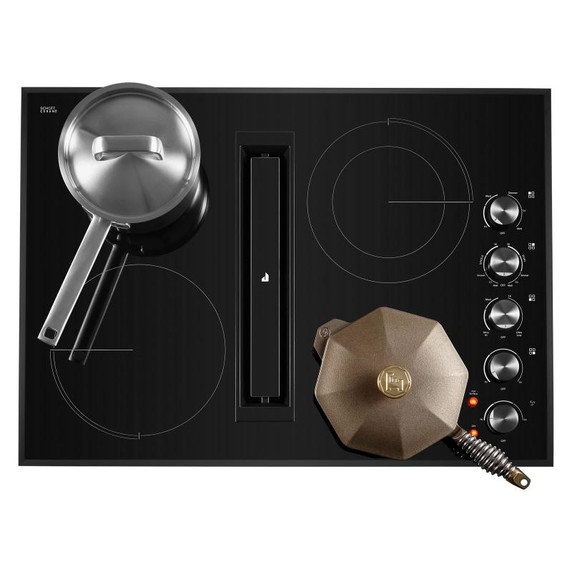

Jennair® 30" JX3™ Electric Downdraft Cooktop JED3430GB
JennAir Luxury Redefined Event, September 1 - October 31, 2024. Save 10% when you purchase 1 qualifying JennAir® product. Save 15% when you purchase 2 or 3 qualifying JennAir® products. Save 20% when you purchase 4 qualifying JennAir® products!

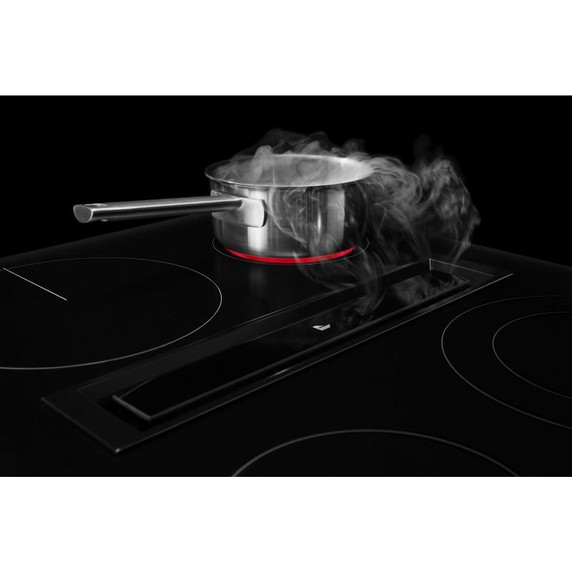

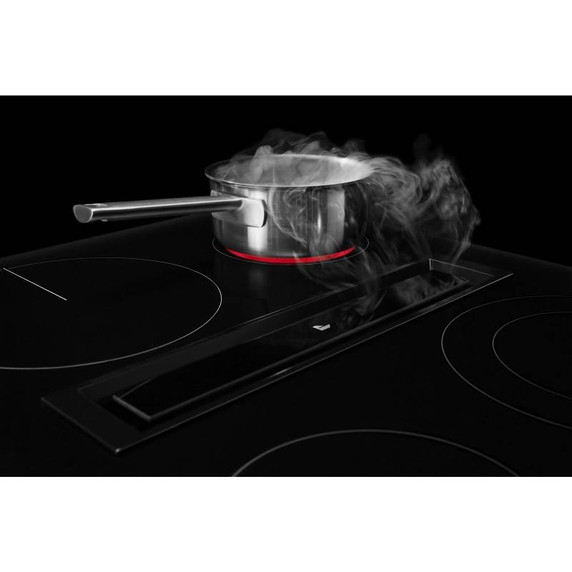

JX3™ Downdraft Ventilation System with 3 SpeedsDeveloped and refined by JennAir®, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.
DuraFinish® Glass ProtectionDuraFinish® Glass Protection helps keep your ceramic glass cooktop's surface looking like new by resisting scratching.

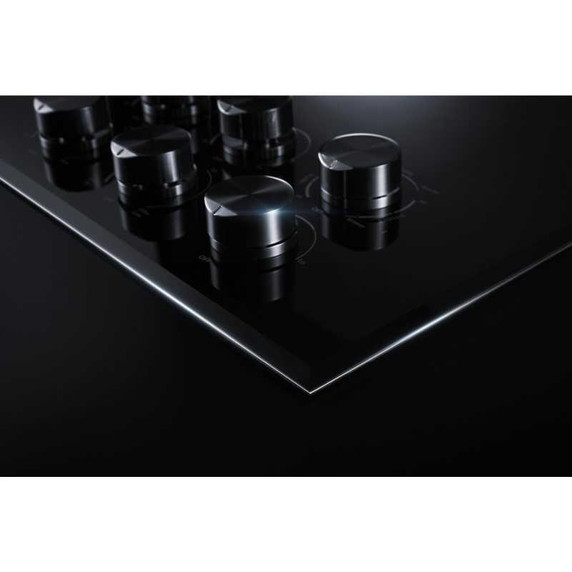

Color-Coordinating Die-Cast Metal KnobsRobust, die-cast metal knobs offer precise control and color-coordinate with either the Euro-Style Stainless or Black design of these cooktops.

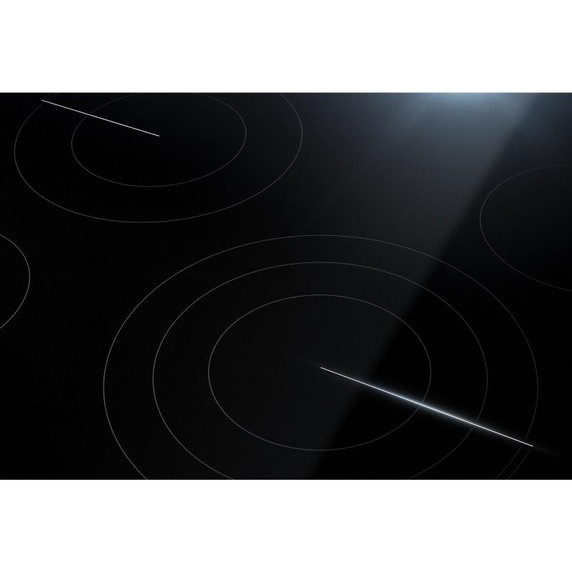

Oblivion Glass DesignSleek black glass that seizes its surroundings. Lose yourself in the depths of infinite possibilities that dare you to explore your limits.

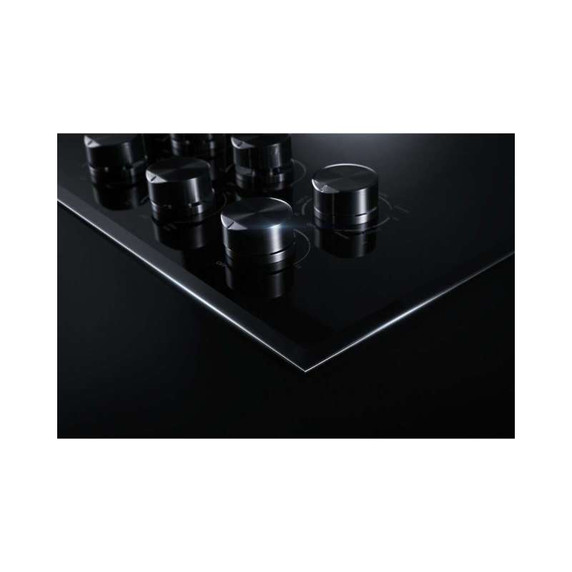

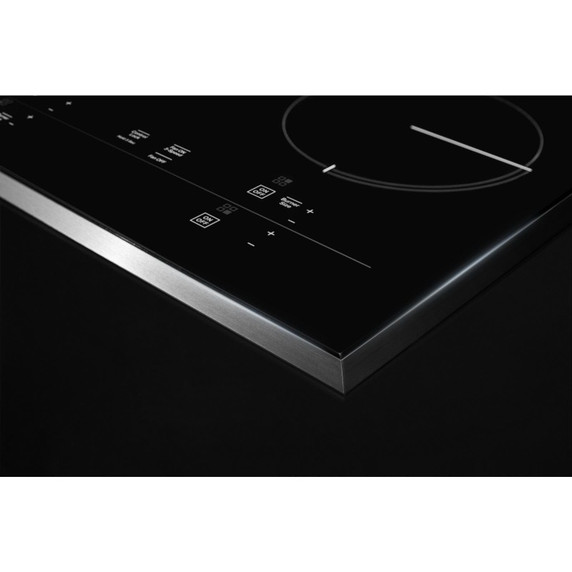

Semi-Flush InstallationSubtlety that dares to be ignored. Standing semi-flush at 3mm above the countertop, this precision edge is minimalism magnified.
Perimetric ExtractionThis sophisticated design is not only attractive, it is the secret behind the ventilation system’s exceptional performance and quiet operation.

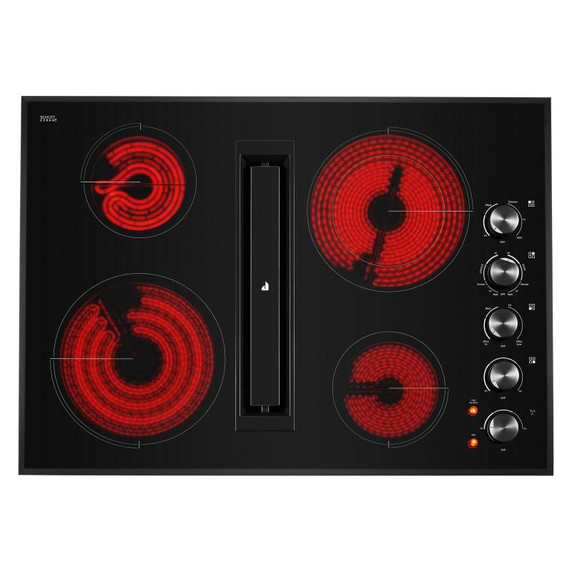

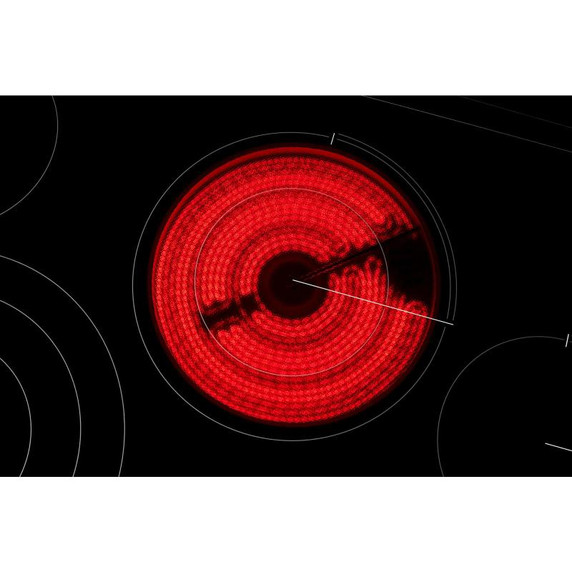

10”/6” Dual-Choice™ Element (3,000 Watt)This two-tiered single element accommodates various-sized cookware in one location and can achieve an output of 3,000 watts when both elements are active.
Convertible to Duct-Free VentilationAllows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
Specifications
Country Of OriginUSA
Product To Product Pairs
Extended Service Plan ParentEW08IW1Y, EW08IW4Y, EW08IW2Y
Optional AccessoriesW10620783, W10355051B, W10177003
Certifications
ULYes
ADA CompliantYes
Cooktop Details
Right Rear Element Burner TypeDual
Cooktop Element StyleCeran
Left Rear Element Burner Size6in.
Number Of Cooking Element Burners4
Right Front Element Burner Size6in.
Right Front Element Burner TypeStandard
Left Front Element Burner TypeHigh Output
Left Rear Element Burner TypeHigh Output
Left Rear Element Burner Power1300W
Left Front Element Burner Power3200W
Left Front Element Burner Size10in.
Right Front Element Burner Power1200W
Right Rear Element Burner Power3000W/1400W
Right Rear Element Burner Size10in./6in.
Features
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Digital DisplayNo
Power BoostNo
Downdraft VentYes
Installs Over Built In OvenNo
Description
Size In30
Cooktop TypeDowndraft
Electrical
Power Cord IncludedNo
Amps40
Volts220
Controls
Control TypeManual
Knob TypeMetal
Control LocationSide
Configuration and Overview
Fuel TypeElectric Radiant
Design Type
Design ExpressionBlack Glass
Ventilation System
Cfm Motor Class310
Depth22.06"
Height3.66"
Maximum Height18.72"
Net Weight70.0 lbs.
Width30.88"

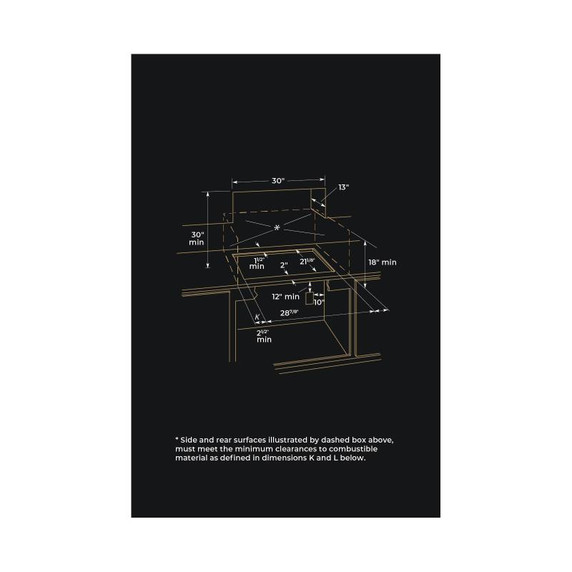

Cutout Depth21.13"
Cutout Width28.88"
Carton Depth Inch26.38
Carton Height Inch23.78
Carton Width Inch35.12
