Kitchenaid® 22 Cu. Ft. 36-Inch Panel-Ready Counter-Depth French Door Refrigerator with Internal Water Dispenser KRFC136TPA
This product is available for pre-order only. Contact us for more information.
Kitchenaid® 22 Cu. Ft. 36-Inch Panel-Ready Counter-Depth French Door Refrigerator with Internal Water Dispenser KRFC136TPA
This product is available for pre-order only. Contact us for more information.
KitchenAid
Kitchenaid® 22 Cu. Ft. 36-Inch Panel-Ready Counter-Depth French Door Refrigerator with Internal Water Dispenser KRFC136TPA

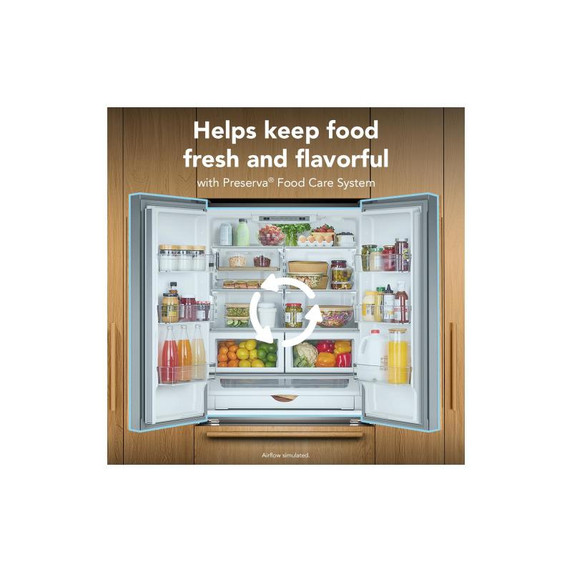

Preserva® Food Care Systemhelps keep ingredients fresh and flavorful. This single evaporator system uses sensors to continually monitor temperature levels in both the refrigerator and freezer and adapts the flow of cold air between them to maintain optimal temperatures throughout.

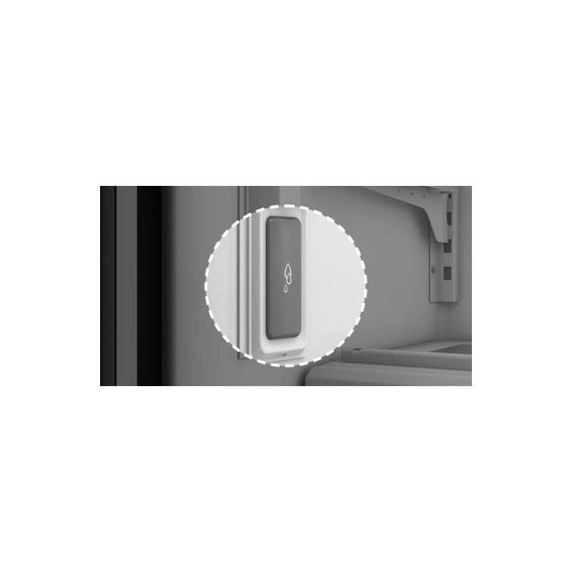

Internal Water Dispenserprovides convenient access to filtered water while maintaining the refrigerator's clean lines and sleek exterior design.

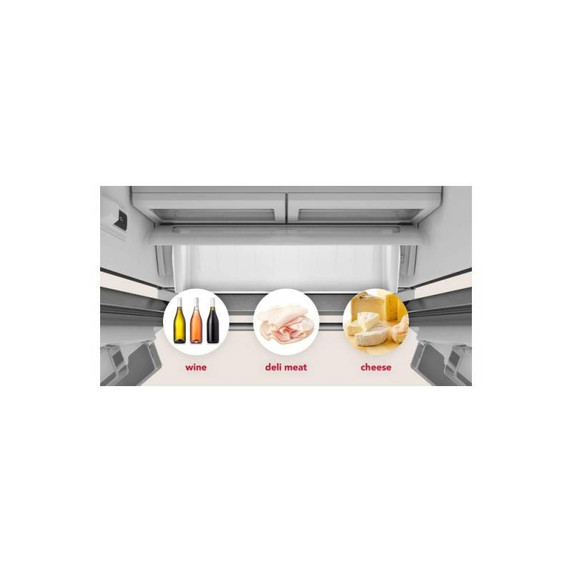

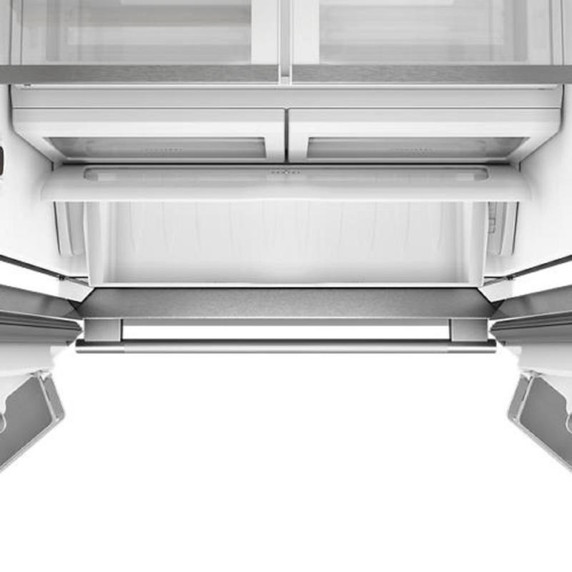

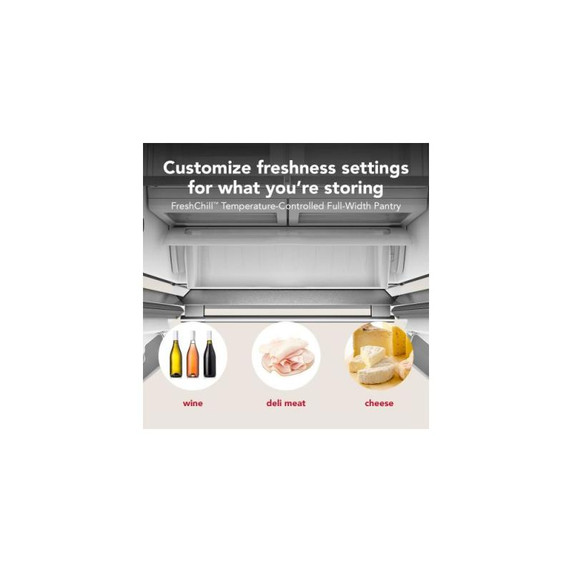

FreshChill™ Temperature-Controlled Full-Width Pantryhas a manual setting so you can customize and maintain the freshness of your ingredients. From a tri-tip to a large rhubarb from the farmer's market, you have control over how much cool air enters the drawer.
Produce Preserverhelps delay over-ripening to extend freshness of fruits and vegetables. This replaceable filter for crisper drawers absorbs the ethylene gas produced as part of the natural ripening process for up to 6 months.
FreshSeal™ Humidity-Controlled Crispershelp keep your produce fresh and crisp using FreshSeal™ gaskets that maintain optimal humidity levels inside the crisper bins.

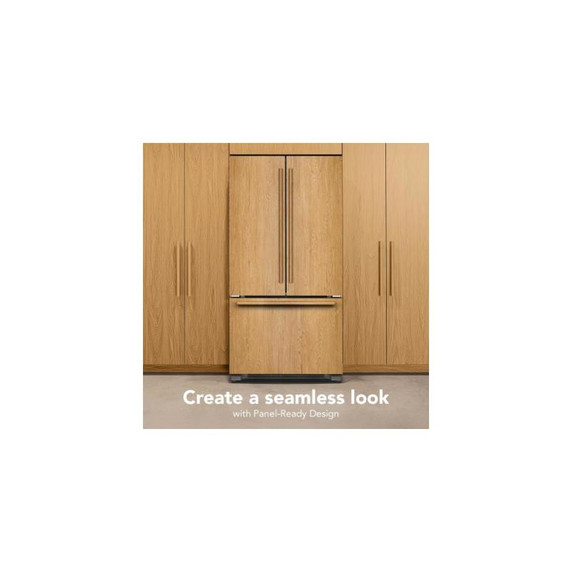

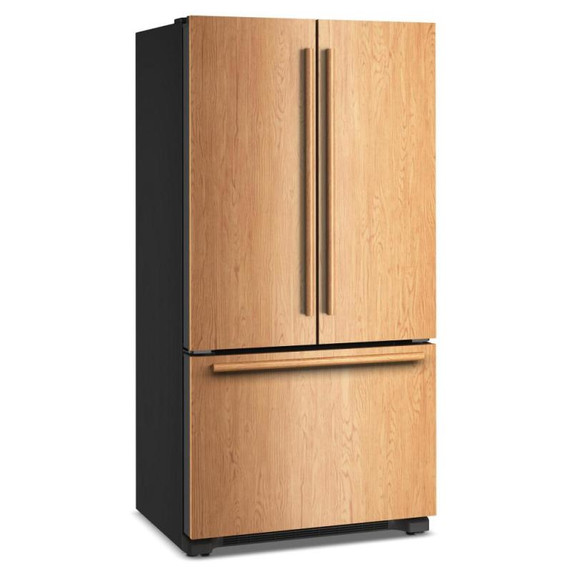

Panel-Ready Designallows you to install custom front panels and handles (not included) over refrigerator doors to create a seamless look with kitchen cabinetry.
Counter-Depth Designfits with surrounding cabinetry, creating a built-in appearance while freeing up more space in the kitchen.
Ultra-Bright LED Lightingturns on when the refrigerator or freezer door is open, making it easy to find items inside.
Automatic Ice Makerensures you have a continuous supply of fresh filtered ice for everyday beverages and entertaining.
Max Coolhelps quickly chill recently loaded groceries by setting the refrigerator compartment to the lowest temperature level for up to 24 hours.
Wood-Look Nesting Shelfadjusts to accommodate items of different heights. Lower the shelf to hold short items like a pint of berries, jam jars or yogurt cups. When not needed, it nests into the shelf above, making room for tall items like wine bottles and freshly squeezed juice.
Controls

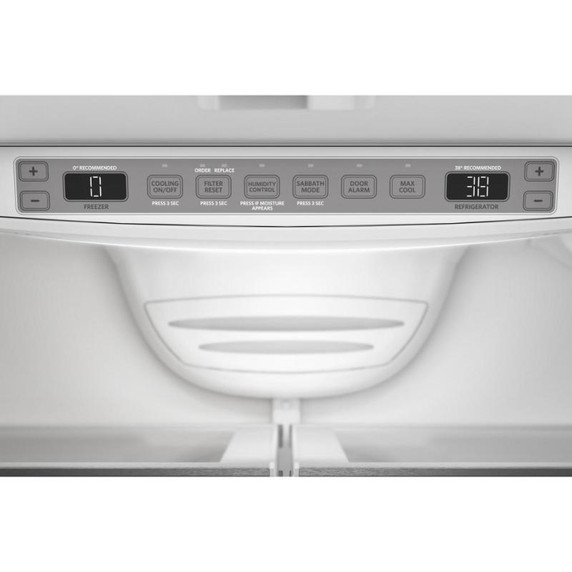

Control LocationInterior Up Front
Door Ajar Open AlarmYes
Max Cool Fast CoolYes
Sabbath ModeYes
Water Filter Indicator ResetYes
Control LockoutNo
Electrical
Volts120
Amps20
Freezer Compartment
Door TypePull-Out
Door BinsNo
LightYes
Freezer Number Of ShelvesNone

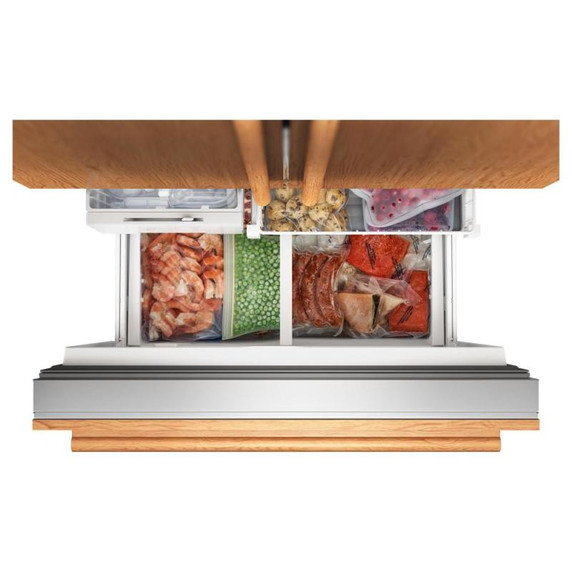

Freezer Drawer Basket1 Full Width Lower Plastic; 1 Half Width Upper Wire
Icemaker
IcemakerYes
Icemaker LocationFreezer
Filters
Produce PreserverYes
Fresh Flow Air Filter IncludedNo
Water Filter LocationInterior
Water Filter Part NumberEDRARXD1
Compatibility
Connectivity
Works With
Dispenser
Dispenser OptionsFiltered Water
Dispenser TypeInterior Water Only
Types Of IceCubed
AHAM Volumes And Shelf Area
Freezer Volume Cu Ft5.59
Refrigerator Volume Cu Ft16.35
Total Volume Cu Ft21.94
Specifications
Country Of OriginUSA
Fingerprint ResistantNo
Product To Product Pairs
Extended Service Plan ParentEW09IW1Y, EW09IW2Y, EW09IW4Y
Launch DateDecember 2025
CustomizableNo
AestheticNew Design
Certifications
ULYes
ADA CompliantNo
Ule Environmentally Preferred CertifiedYes
Energy Star QualifiedNo
Cee TierNot Rated
Energy Rating Kwh Year633
Exterior
Door StyleFlat
Hidden HingeYes
Handle ColorStainless Steel
Cabinet ColorGrey
Handle MaterialStainless Steel
Cabinet FinishTextured
Number Of Doors3
Reversible DoorN/A
Base Grille ColorGrey
Handle TypeReach-Through Handle
Configuration
Installation ConfigurationFreestanding
Description
Type Of RefrigeratorFrench Door
Details
Counter DepthYes
Cooling TypeSingle Evaporator
Refrigerator Compartment
Humidity Controlled DrawersYes
LightingLED
Door Bins2 Fixed Full-Width Gallon; 4 Adjustable Full-Width
Pantry DrawerYes
Deli DrawerNo
Supplementary Containers
Non Climate Control Drawers
Temperature Controlled Drawers1 Full-Width Pantry

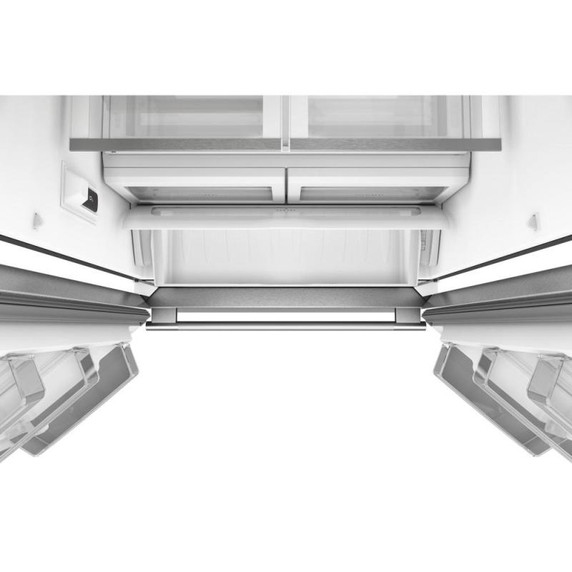

Conventional Shelves1 Fixed Full-Width Glass; 1 Nesting Shelf; 4 Adjustable Half-Width Glass
Liner FinishWhite
Number Of Interior Shelves6

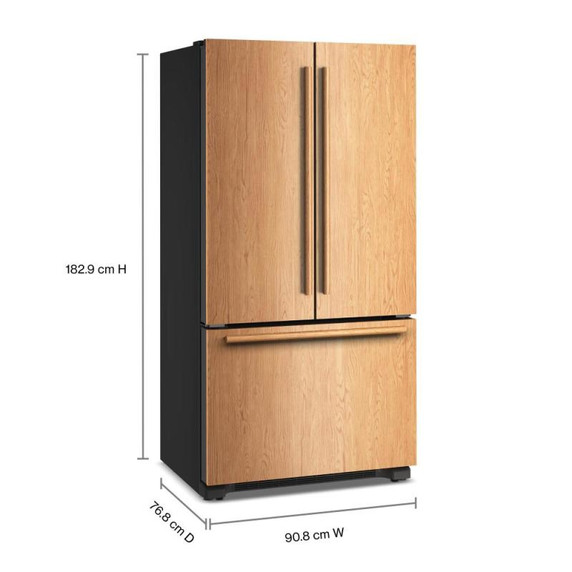

Carton Depth32.3"
Carton Height75.8"
Carton Width38.3"
Depth With Door Open 90 Degree44.13"
Depth30.25"
Gross Weight306.0 lbs.
Height72.0"
Net Weight286.0 lbs.
Width35.75"
Cabinet Width35.63"
Cutout Height72.0"
Cutout Width36.0"
Popular Height71 Inch Tall or Higher
Popular Width36 Inch Wide
Depth Closed Excluding Handles27.75"
Depth Closed Including Handles30.25"
Depth Excluding Doors24.63"
Height To Top Of Cabinet71.38"
Height To Top Of Door Hinge72.0"
