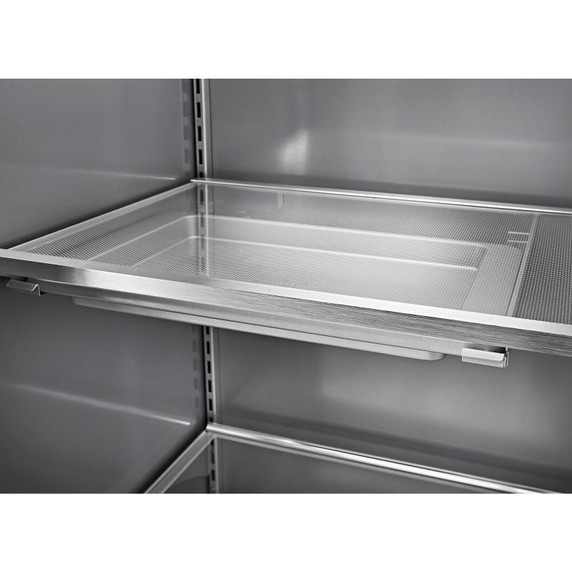

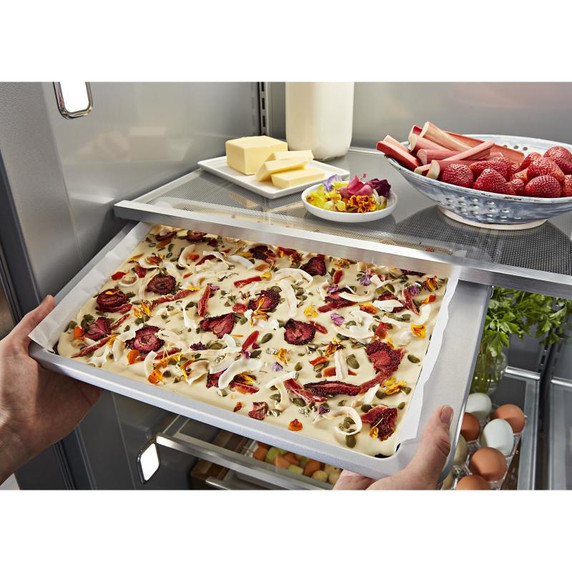

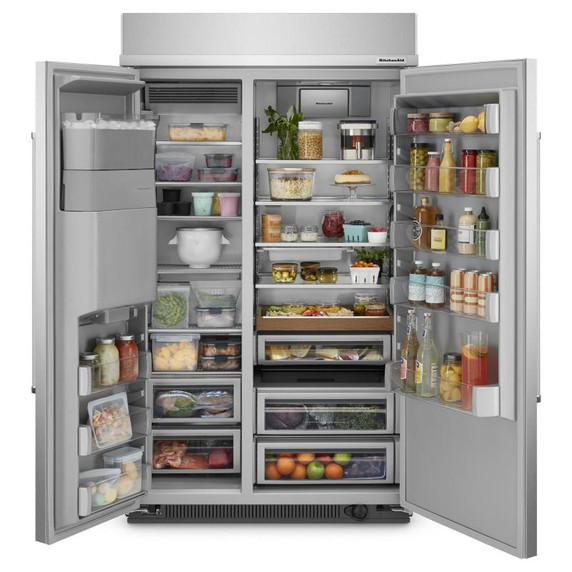

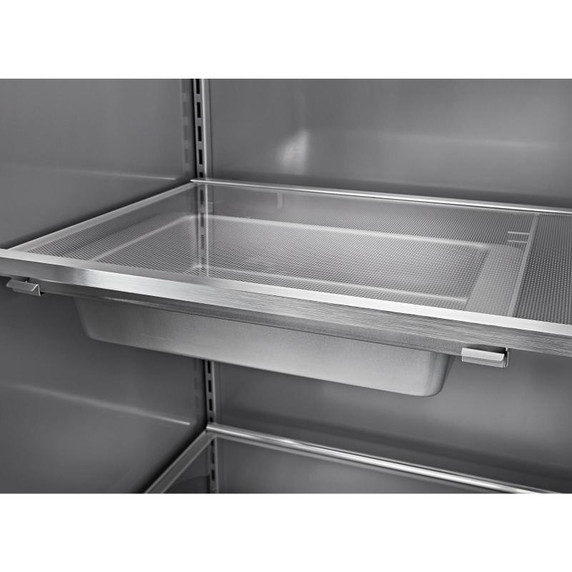

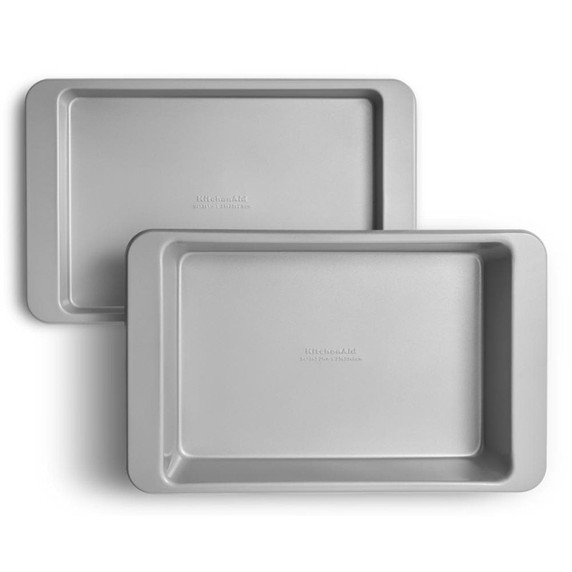

Under-Shelf Prep Zoneutilizes unused space with included 9"x13" baking sheet and cake pan. Go directly from the refrigerator to the oven to the dishwasher. Ideal for storing food prep or leftovers, marinating, chilling desserts, making focaccia and more.

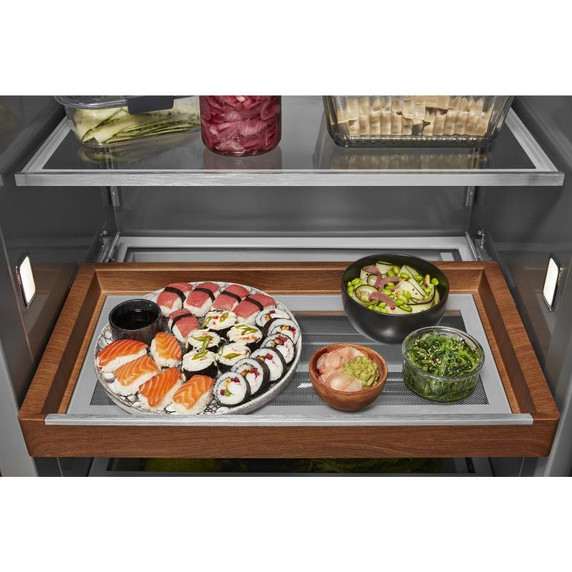

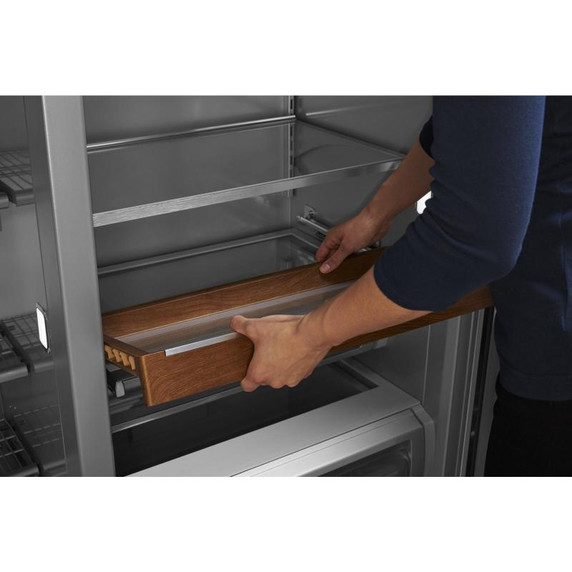

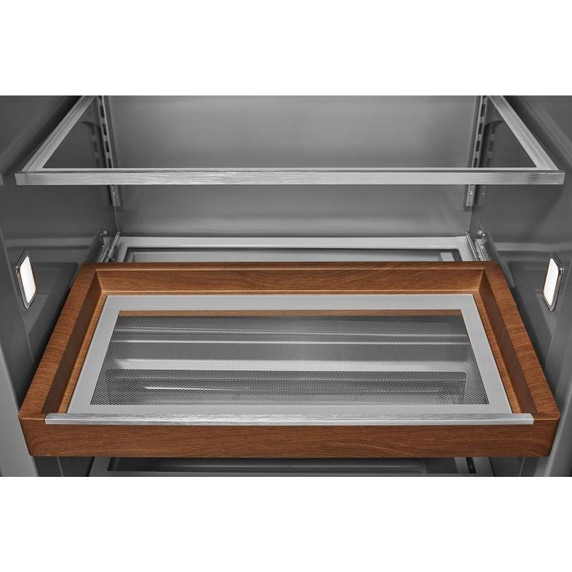

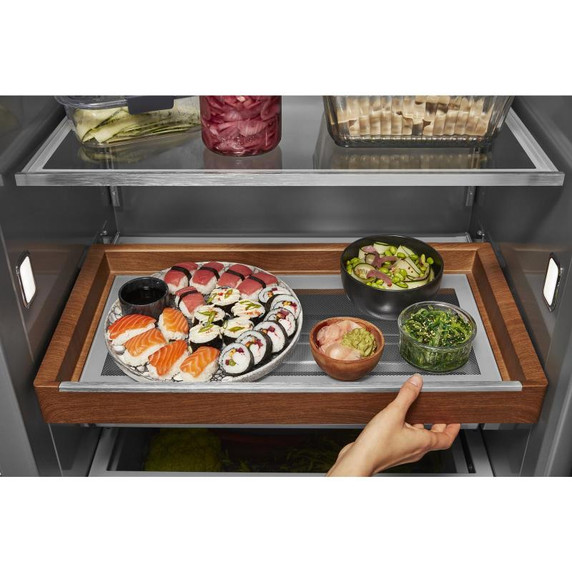

Sliding Storage Trayis a versatile area for storing platters, organizing ingredients and keeping items easily accessible. It comes in a wood-look finish that is moisture- and stain-resistant, and tray removes fully for easy cleaning.
ExtendFresh™ Plus Temperature Management Systemhelps keep ingredients fresh using sensors that continuously adjust temperatures in the refrigerator and freezer by monitoring the airflow between them.
FreshChill™ Temperature Controlled Drawerhas a manual setting so you can customize and maintain the freshness of your ingredients. From a tri-tip to a large rhubarb from the Farmer's Market, you have control over how much cool air enters the drawer.

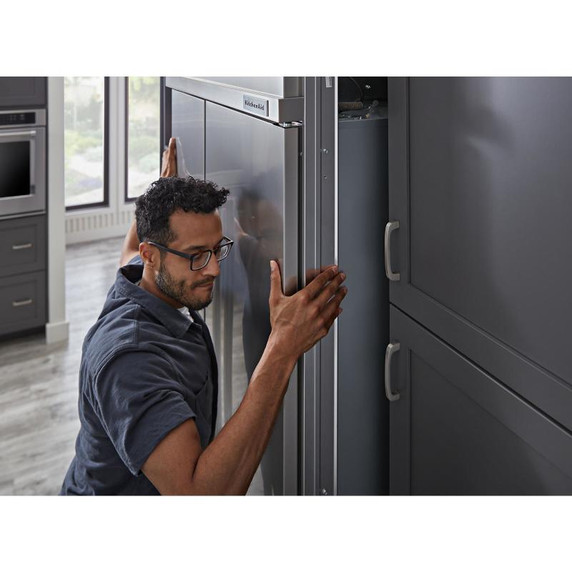

Fit System Limited GuaranteeIf new 36”, 42” or 48” built-in refrigerator doesn’t fit, you may get up to $300 for professional modifications. Existing cabinet modifications only. Exclusions apply. See terms.* For Full terms and details Visit https://www.kitchenaid.com/promotions/promotions.html

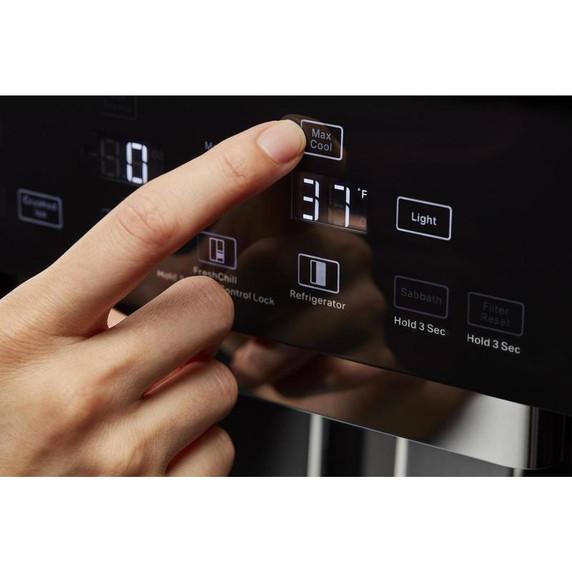

Max CoolWhen selected, automatically adjusts the temperature in the refrigerator and freezer to the lowest setting when appropriate. This keeps the refrigerator at the ideal temperature when loading groceries, the doors are frequently opened or in higher room temperatures.

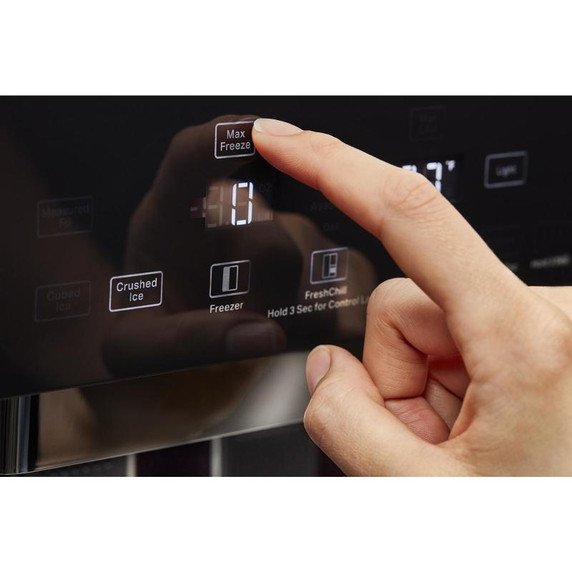

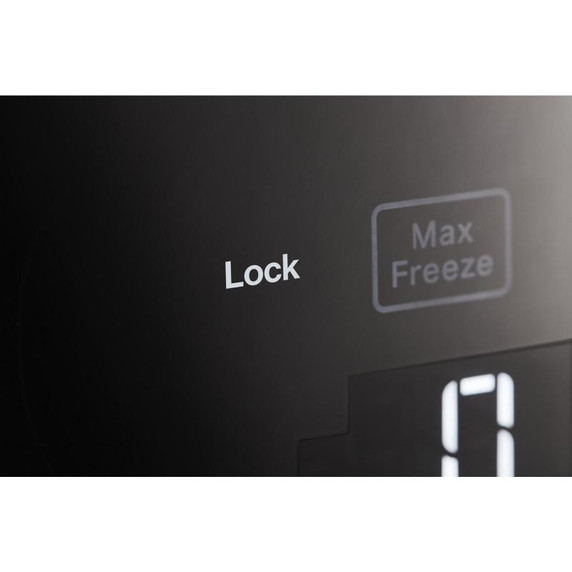

Max Freezelets you use the touch of a button to drop freezer temperature to coldest level (-8F), so frozen goods can reach optimal temperatures. After 48 hours, the temperature will automatically be restored to the previous setting.

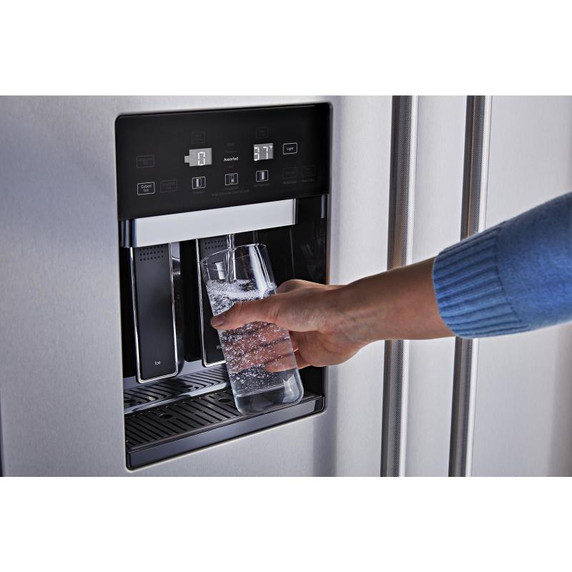

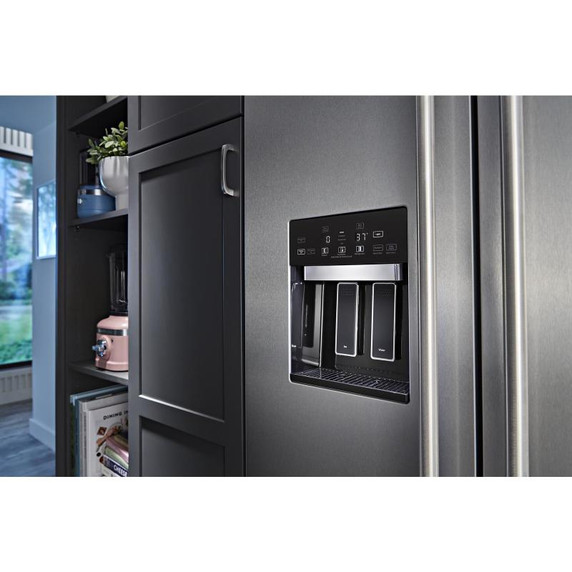

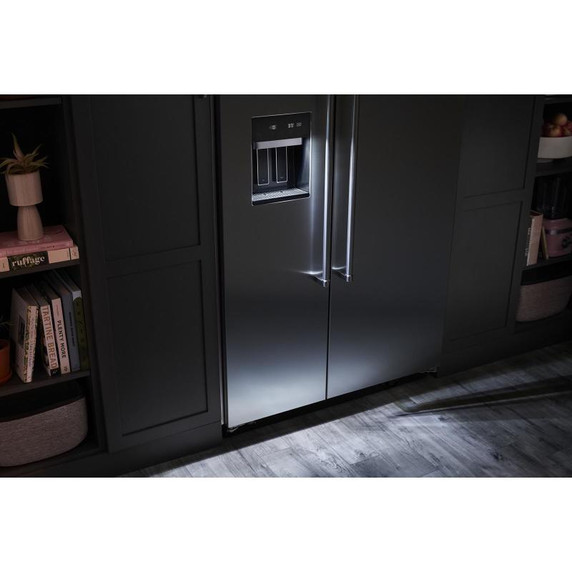

Exterior Ice and Water Dispenserfits glasses and measuring cups, and dispenses filtered water and ice without having to open the refrigerator door.

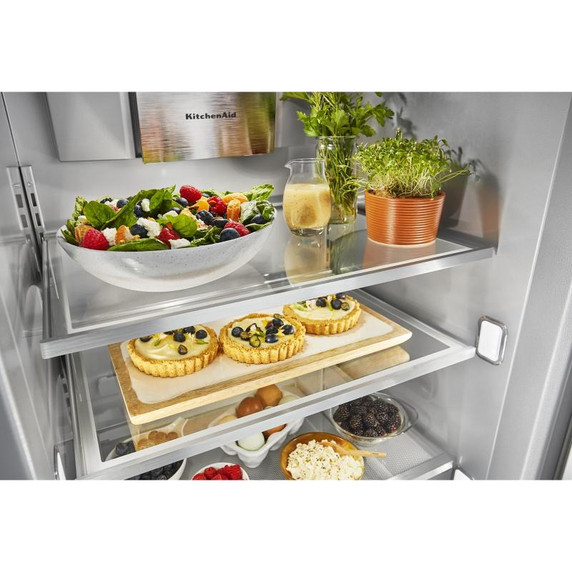

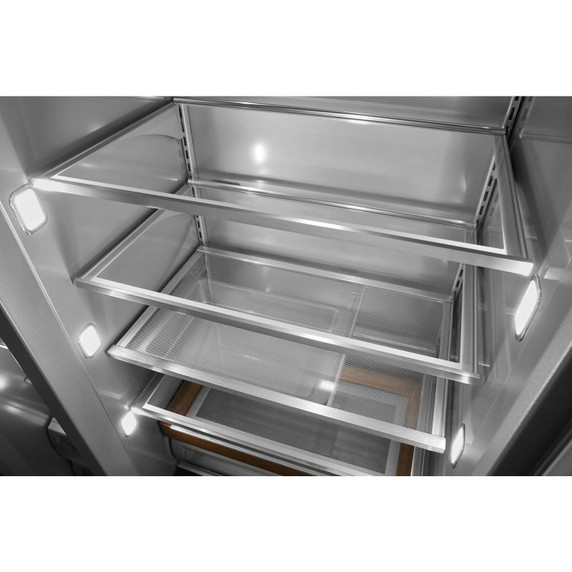

Adjustable Spill-Resistant Glass ShelvesAre easy to clean and help prevent messes from spilling over into other parts of the refrigerator. The shelf edges are nano-etched with a finely textured surface that helps contain spills, and lets you use the whole shelf from edge-to-edge.
Platinum-Colored Interiorbrings premium style inside the refrigerator to complement the quality ingredients you keep. The sleek platinum-colored interior accents the design details of the refrigerator, and offers a step up from the standard white interior.

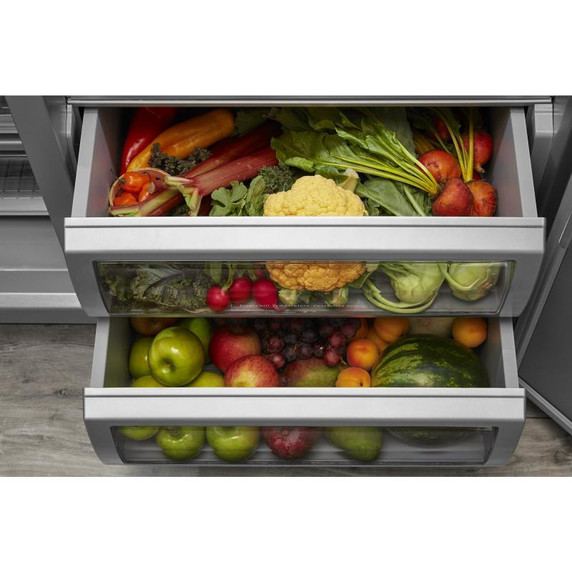

SatinGlide® Drawersadd a smooth experience to the crisper drawers. The ball bearing rollers and glides allow effortless in-and-out movement even when drawer is fully loaded.
LED Lighting Systemlocated throughout the freezer and refrigerator, makes it easy to find items at a glance. Upon opening, lights illuminate gradually to full brightness for easy visibility.

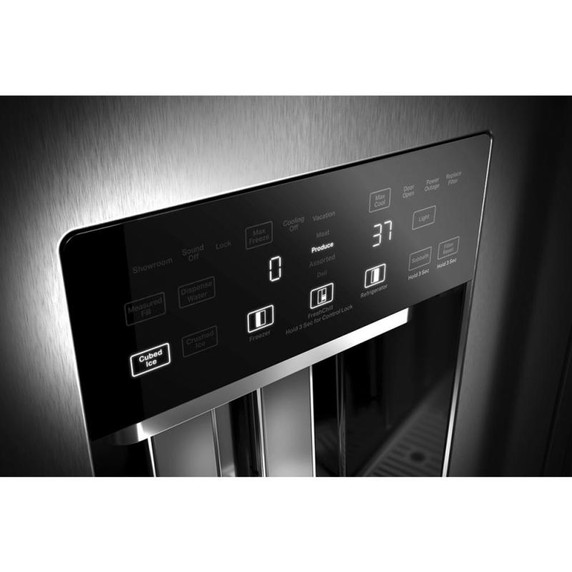

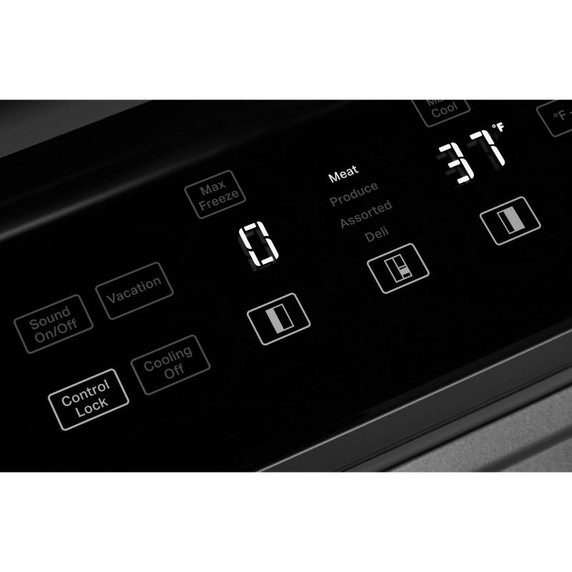

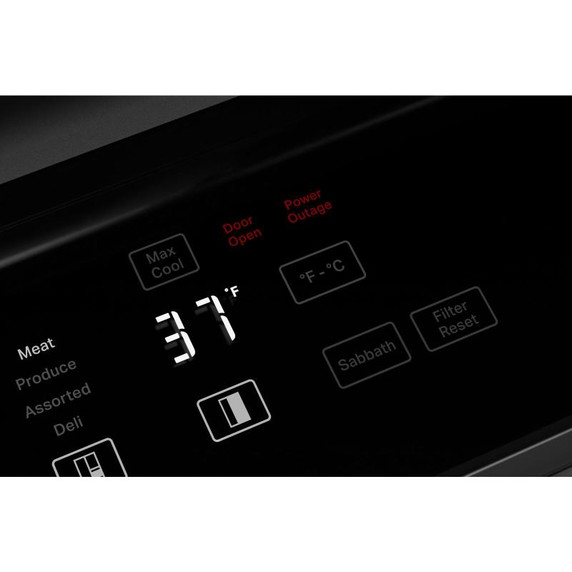

Touchscreen controlsputs all refrigerator functions at your fingertips. Display has a smooth design and easy-to-use controls, that allow intuitive operation of the refrigerator.

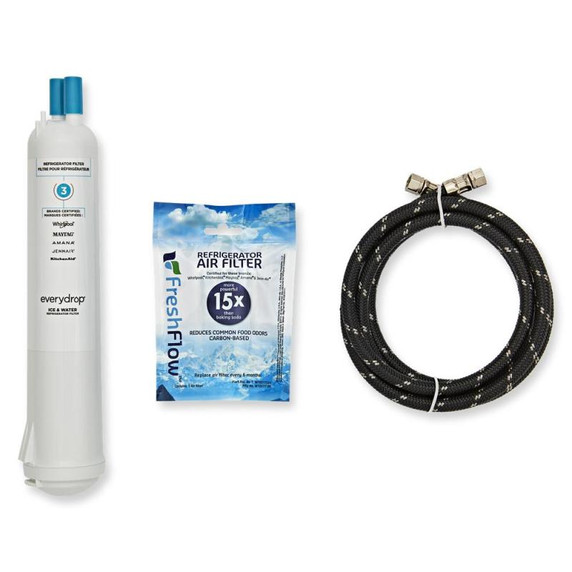

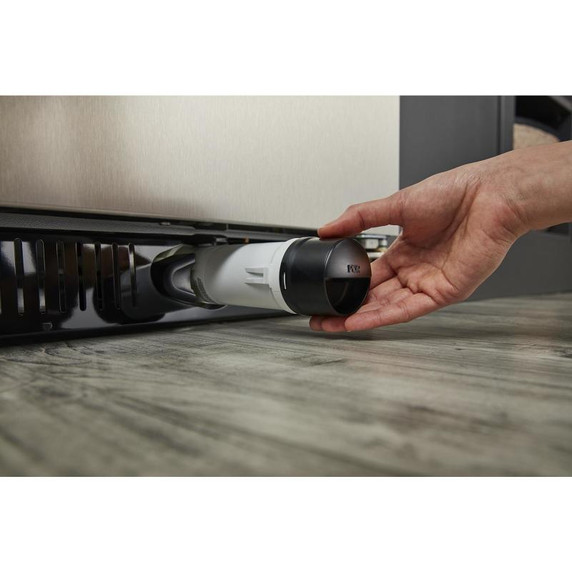

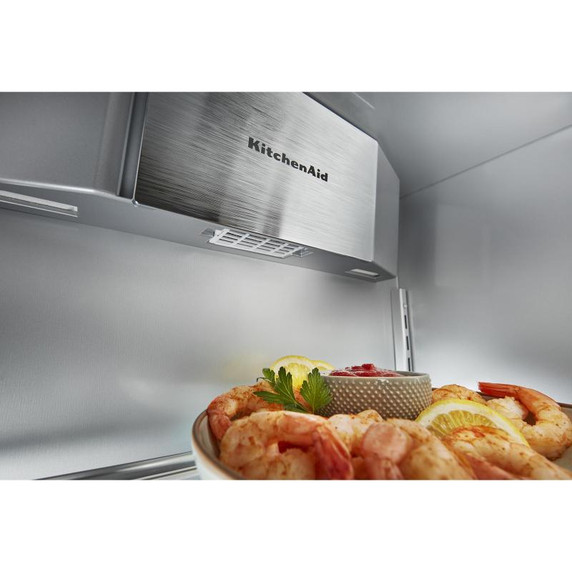

FreshFlow™ Air Filterhelps reduce common food odors in the refrigerator and is 15 times more effective than baking soda. It is recommended that you replace this filter every 6 months. Replacing the air filter will require no disassembly or repair experience.

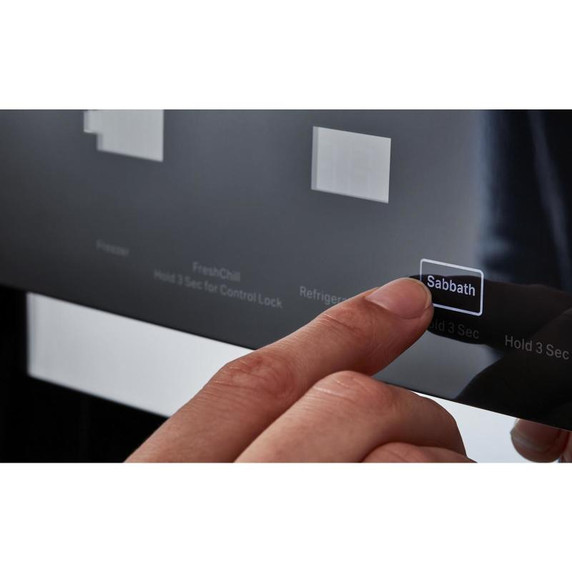

Star-K Certified Sabbath Modemeets kosher requirements for use on the Jewish Sabbath and other holidays. Turning on Sabbath Mode disables the refrigerator's automatic lights and alarm tones, while maintaining cold temperatures for freshness.
Measured Water Filldispenses the exact amount of filtered water needed for recipes and can be customized to ounces or liters. Forgo your measuring cups and use the convenient presets, with an option to customize settings for frequently used amounts of your own.
Easy Access Binkeeps small ingredients in sight and at hand. Perfect for storing tomato paste, ginger, horseradish and other small items that can easily get lost on shelves.
Control TypeElectronic
Door Ajar Open AlarmYes
Control LockoutN/A
Max Cool Fast CoolYes
Sabbath ModeYes
Water Filter Indicator ResetYes
Control LocationExterior
Volts120
Amps15
Door Bins3 Adjustable Full-Width
LightYes
Freezer Drawer Basket2 Full Width Lower
Freezer Number Of Shelves2 Fixed Full-Width Wire; 4 Adjustable Full-Width Wire
Shelves2 Fixed Full-Width Wire; 4 Adjustable Full-Width Wire

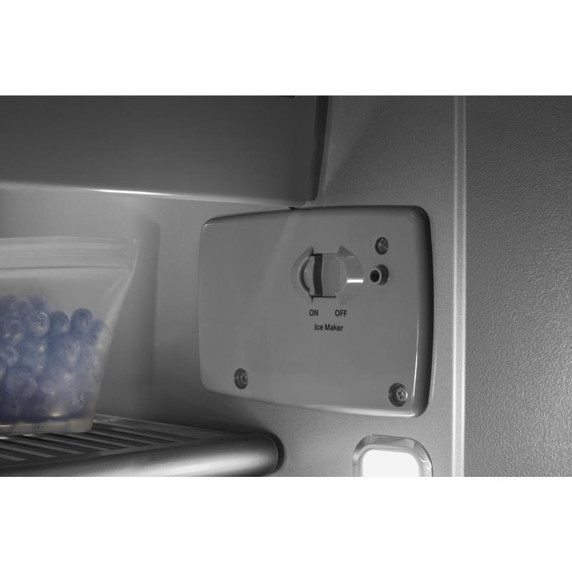

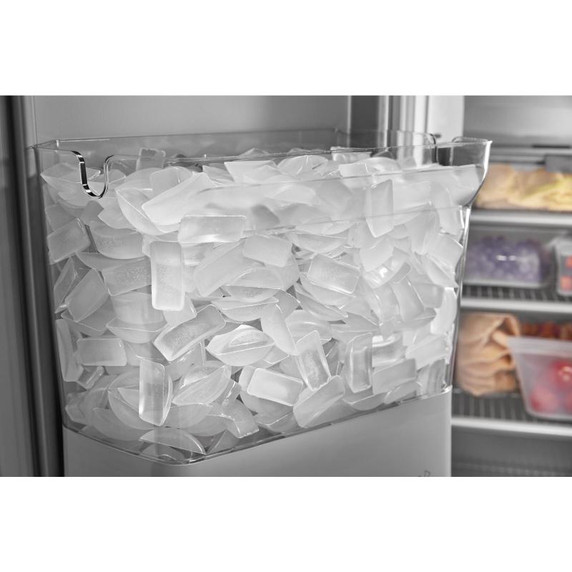

IcemakerYes
Icemaker LocationFreezer

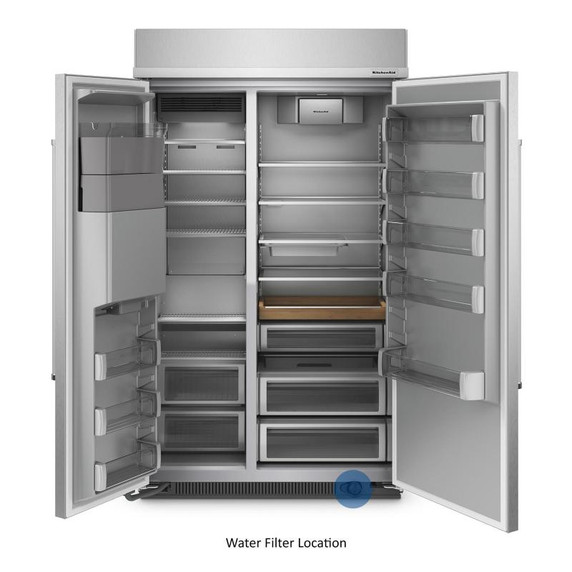

Water Filter LocationExterior

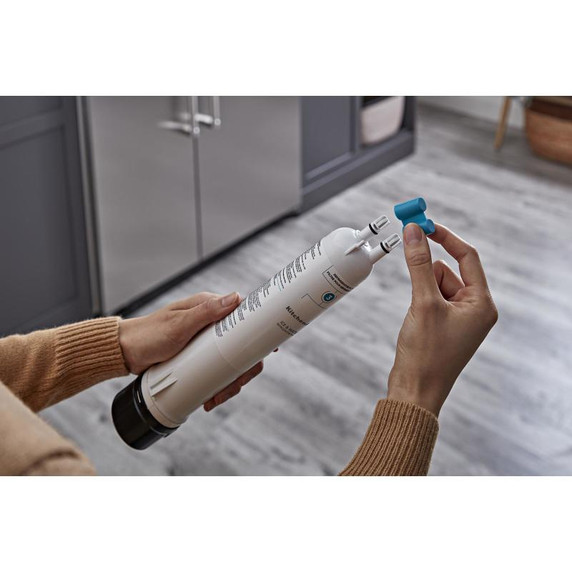

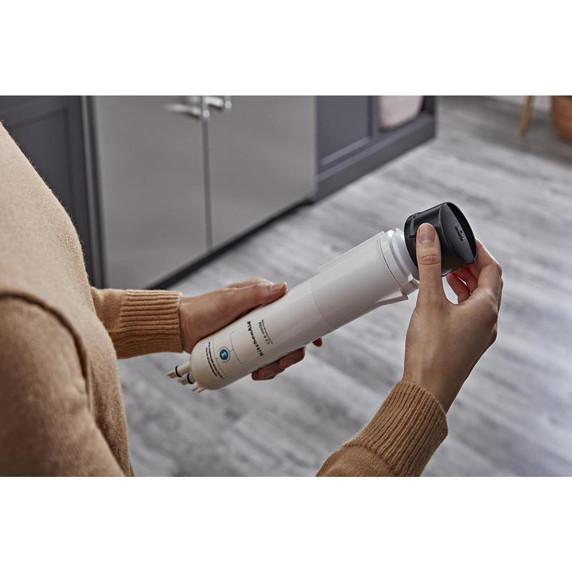

Water Filter Part NumberEDR3RXD1
Dispenser TypeExterior Ice and Water
Dispenser OptionsFiltered Water; Ice; Ice Dispenser Lock; Light; Measured Fill
Total Volume Cu Ft29.4
Freezer Volume Cu Ft10.3
Refrigerator Volume Cu Ft19.1
Country Of OriginUSA
Fingerprint ResistantNo
Required AccessoriesW10311524
Optional AccessoriesW10311524
Product To Product Pairs
Extended Service Plan ParentEW13IW4Y, EW13IW1Y, EW13IW2Y
ULYes
Energy Star QualifiedYes
Cee TierTier I
ADA CompliantNo
Star K CertifiedYes
Door FinishSmooth
Door StyleFlat
Handle MaterialMetal
Hidden HingeYes
Handle ColorStainless Steel
Base Grille ColorBlack
Cabinet ColorGrey
Cabinet FinishSmooth
Number Of Doors2
Reversible DoorN/A
Handle TypeReach-Through Handle

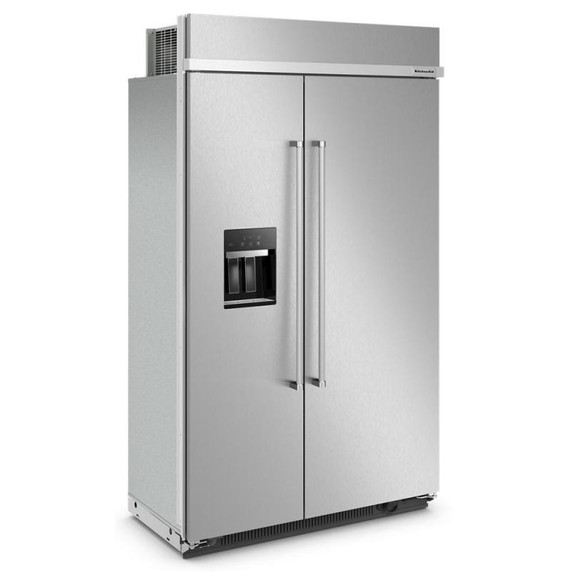

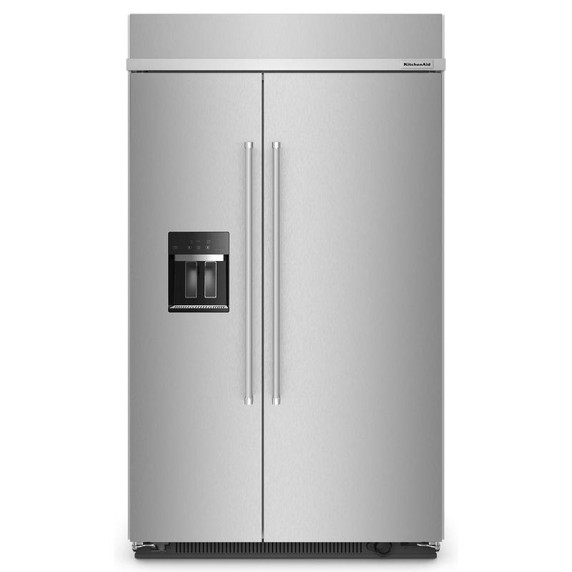

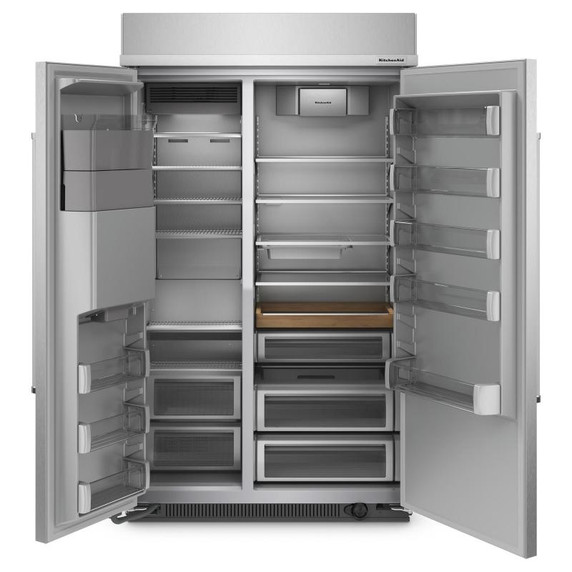

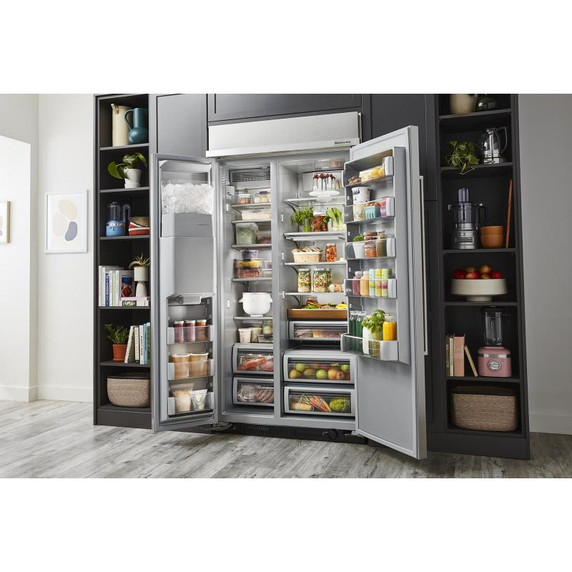

Type Of RefrigeratorSide-by-Side
LightingLED
Number Of Interior Shelves4
Spill Proof Glass ShelvesYes
Conventional Shelves1 Slide-Out - Wood Finish
Supplementary Containers1 9x13 Cake Pan; 1 9x13 Sheet Pan
Temperature Controlled Drawers1 Full-Width
Non Climate Control Drawers2 Full-Width

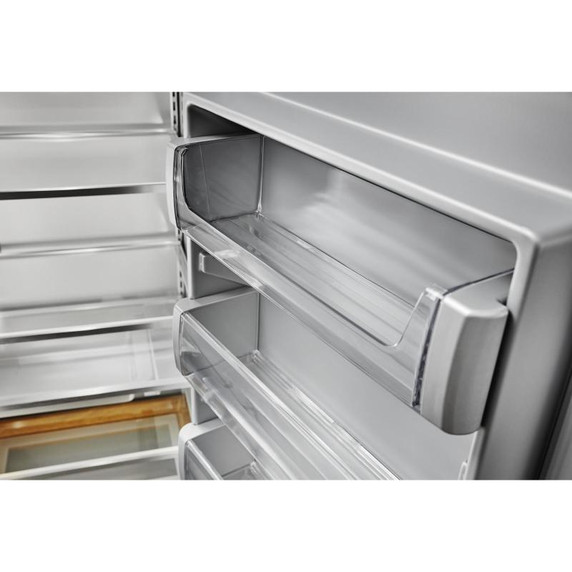

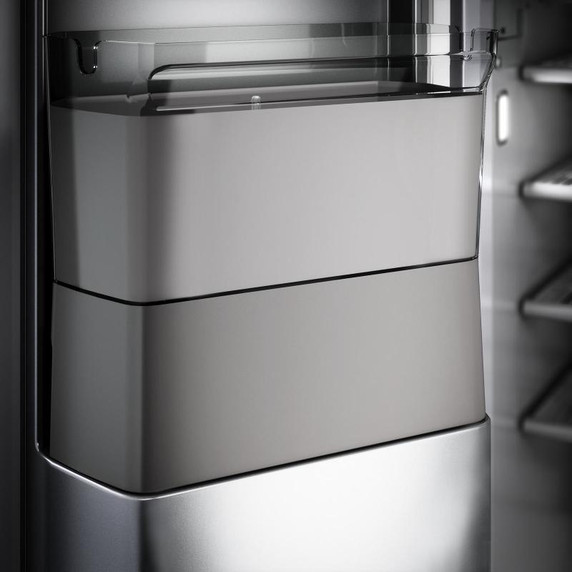

Door Bins1 Full Width Non Adjustable Gallon; 1 Full Width Non Adjustable Small Item; 3 Adjustable Full-Width
Carton Depth31.0"
Carton Height86.0"
Carton Width50.5"

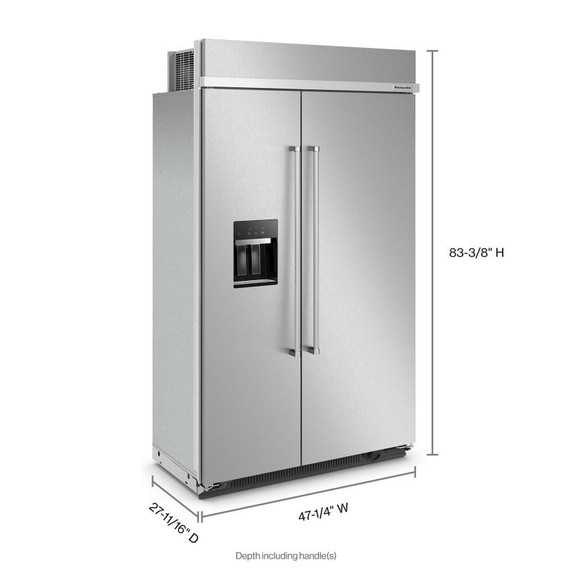

Depth Closed Excluding Handles25.0"
Depth Closed Including Handles27.69"
Depth With Door Open 90 Degree50.69"
Depth27.69"
Gross Weight647.0 lbs.
Net Weight592.0 lbs.
Width47.25"
Cabinet Width47.0"
Cutout Depth24.0"
Cutout Height83.5"
Cutout Width47.5"
Depth Excluding Doors22.38"
Height To Top Of Cabinet74.5"
Popular Width48 Inch Wide
