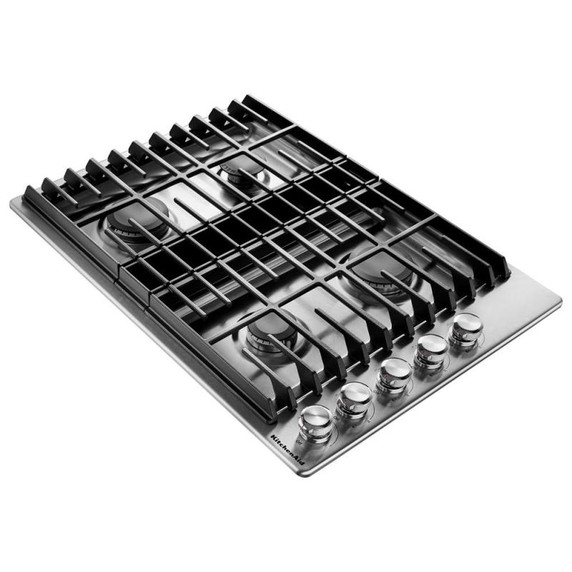

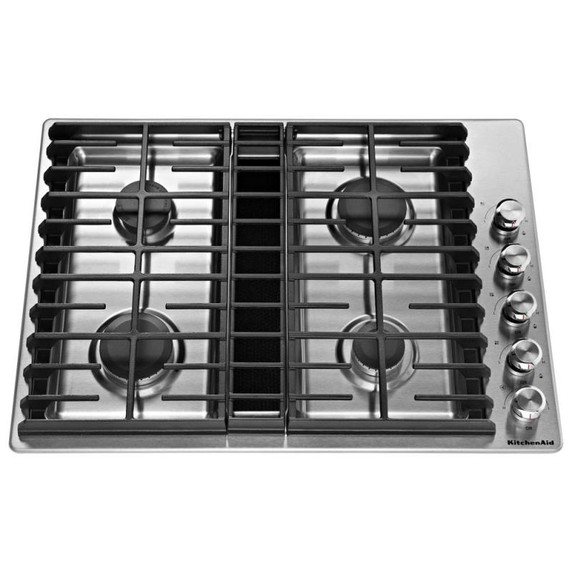

Kitchenaid® 30" 4 Burner Gas Downdraft Cooktop KCGD500GSS
Downdraft VentilationIntegrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
17K BTU Professional BurnerProvides the ability to use high-temperature cooking methods such as searing, stir-frying, and wok cooking as well as low temperatures suitable for simmering.

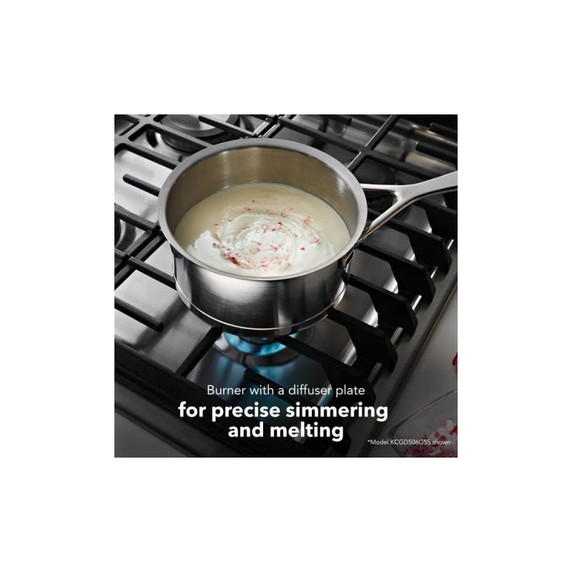

5K BTU Even-Heat™ Simmer BurnerA diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.
300 CFM Exhaust RatingHandles the venting requirements of high temperature cooking techniques like pan searing and stir-frying.
3-Speed Fan ControlCan be precisely matched to cooking needs, effectively removing steam, grease, and odours from the air.
15K BTU Professional BurnerReaches the high temperatures required to quickly get liquids to a boil and for high-temperature cooking techniques including getting a great sear on meat.
Convertible to Duct-Free VentilationAllows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
Melt CapMelt chocolate or butter, simmer delicate sauces, or poach eggs on a low-power burner, thanks to a wider burner cap that shields and diffuses the flame to produce a gentler, low-power heat.
Electronic Ignition and Automatic ReignitionLights burners with an electric spark instead of a pilot light. For more reliable performance, burners are relit if the flame is blown out.

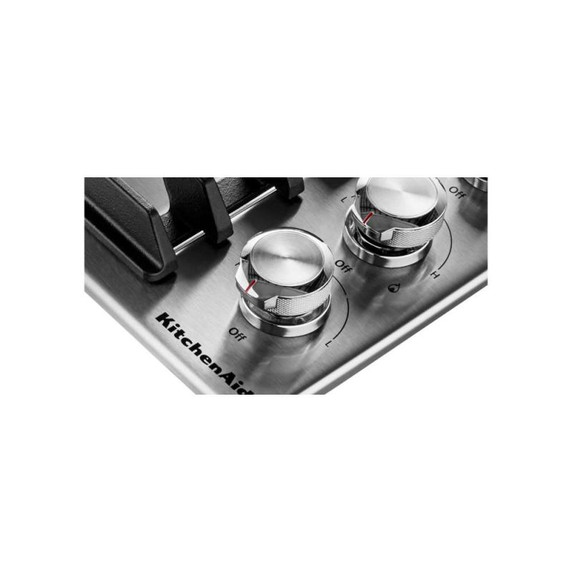

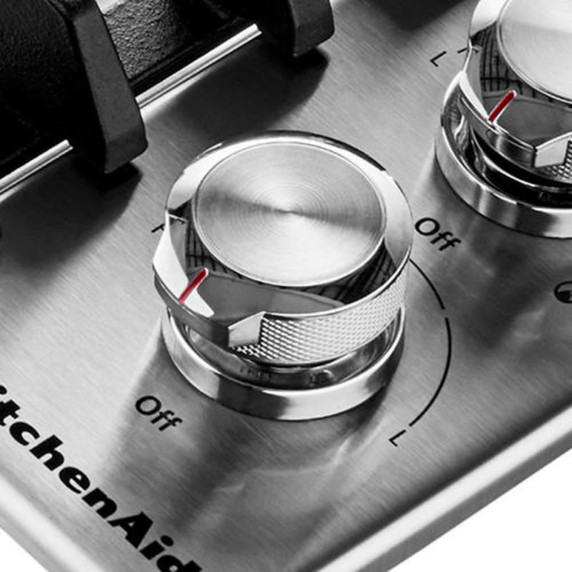

Stainless Steel KnobsEnhance the look of the cooktop surface with sturdy construction that adds to their premium feel.

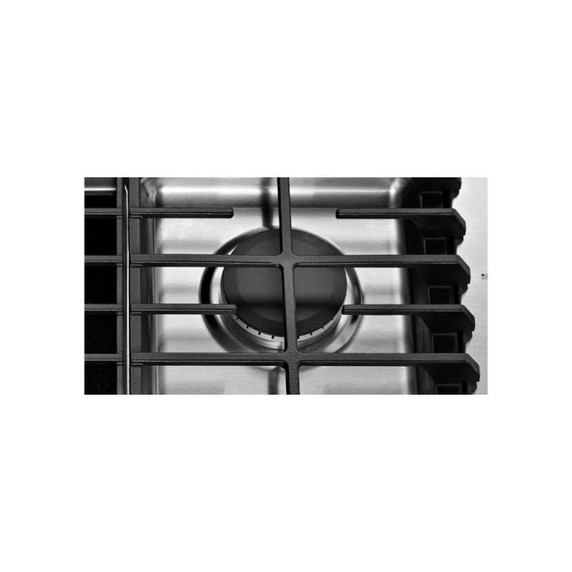

Full-Width Cast-Iron GratesEnhances the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
LP Conversion Kit IncludedAllows you to convert the cooktop so it can be used with LP gas.
Controls
Control TypeManual
Knob TypeMetal
Control LocationSide
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedYes
Configuration and Overview
Fuel TypeGas
Specifications
Country Of OriginUSA
Optional AccessoriesW10177003, W10620783
Product To Product Pairs
Extended Service Plan ParentEW08IW1Y, EW08IW2Y, EW08IW4Y
Features
Hot Surface Indicator LightNo
LP ConvertibleYes
Automatic Pan DetectionNo
Digital DisplayNo
Power BoostNo
Power Outage CompatibleYes
Heating Element On Indicator LightNo
Downdraft VentYes
Installs Over Built In OvenNo
Refinements
Kad CooktopDowndraft Ventilation; Even-Heat Melt Burner
Certifications
ULYes
ADA CompliantNo
Description
Size In30
Cooktop TypeDowndraft
Cooktop Details
Cooktop Element StyleSealed Burners
Number Of Cooking Element Burners4
Left Front Element Burner TypeSealed Burner
Right Front Element Burner Power10000BTU
Right Rear Element Burner TypeSealed Burner
Right Front Element Burner TypeSealed Burner
Left Rear Element Burner Power5000BTU
Left Front Element Burner Power17000BTU
Left Rear Element Burner TypeEven-Heat™
Right Rear Element Burner Power15000BTU
Ventilation System
Cfm Motor Class300

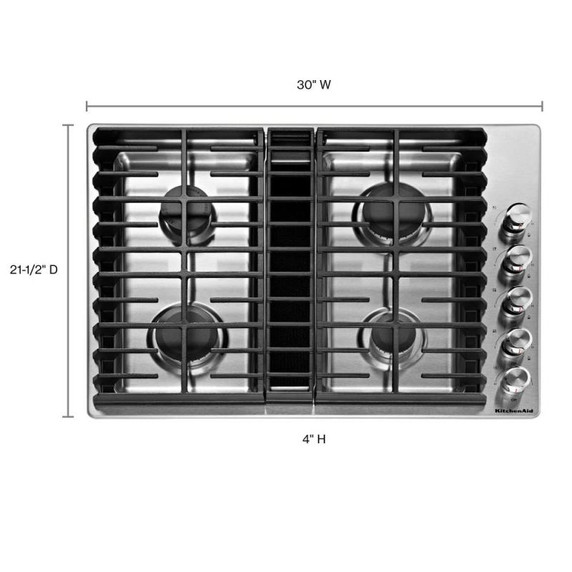

Depth21.5"
Height18.44"
Net Weight66.0 lbs.
Width30.0"
Cutout Depth19.94"
Cutout Width28.63"
Carton Depth Inch26.38
Carton Height Inch23.78
Carton Width Inch35.12
