KitchenAid

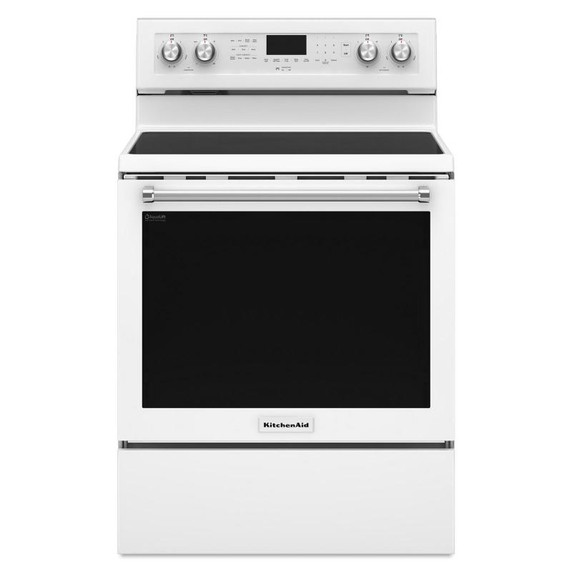

Kitchenaid® 30-Inch 5-Element Electric Convection Range YKFEG500EWH
Even-Heat™ True ConvectionProduces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.
6.4 Cu Ft. Oven CapacityProvides an extra-large cooking capacity that easily handles multiple dishes at once.
Professionally-Inspired DesignCombines a bold blend of professionally-inspired styling with sleek touches for the home. This range features Satin Textured Handles and the KitchenAid® Badge, a symbol of uncompromised quality.
5 cooking elements including a warm zoneProvides provides five independent cooking surfaces that allow you to do more on your range.It features two dual elements 12/9", 9/6", two 6 inch cooking zones, plus a dedicated warming zone.
EasyConvect™ Conversion SystemTakes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
Aqualift®Cleans your oven in less than an hour without odours and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.
Storage drawerAdds additional storage space that’s perfect for pots, pans and baking sheets.
Hidden BakeCovers up the baking element, making it easier to wipe away spills.
2 Dual Elements (12/9" and 9/6")Provides multiple cooking surfaces that allow you to do more on your range. It features two cooking elements, each with dual zones. The first element has cooking zones of 9 and 12 inches and the second has 6 and 9 inch zones.
Stainless Steel Cooktop TrimProvides a seamless transition to other surfaces and enhances the look of edges around stainless steel cooktops.
Controls
Knob TypeWeighted
Knob ColorStainless Steel
Electronic Display TypeDigital
Electrical
Hz60
Volts240
Amps40
Configuration and Overview
Fuel TypeElectric
Energy
Annual Energy Usage Kwh611
Specifications
Country Of OriginUSA
Dishwasher SafeNo
Optional AccessoriesW10355051B
Extended Service Plan ParentEW07IW2Y, EW07IW4Y, EW07IW1Y
Product To Product PairsKVUB600DSS, KVUB400GSS, KVWB600DSS, KVWB400DSS, UVL5430JSS, KVWB600HBS
Features
Heating Element On Indicator LightYes
Automatic Convection Conversion Temperature AdjustYes
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Natural Gas ConvertibleNo
Certifications
ULYes
Energy Rating Kwh Year611
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Handle TypeTowel Bar
Drawer TypeStorage Drawer
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Description
Size In30
Range TypeFreestanding
Details
Broiler LocationTop of Oven
Convection FunctionsBake; Broil; Roast
Hidden Bake ElementYes
Broiler Element Power3600W
Interior ColorGrey
Oven Cooking SystemConvection
Number Of Oven Lights1
Oven Light TypeIncandescent
Convection Element TypeFan
Cooktop Surface MaterialCeramic Glass
Oven Control TypeElectronic Touch
Number Of Oven Racks3
Oven Control LocationRear Control
Convection Element Power Watts900
Number Of Rack Guides7
Oven Rack Type1 Max Capacity, 2 Standard
Bake Element Power3600W
Oven Cleaning TypeAquaLift® Self-Clean
Cooktop Details
Left Front Element Burner TypeDual
Right Front Element Burner TypeDual
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop Element StyleCeran
Left Rear Element Burner Size6in.
Right Front Element Burner Size9in./6in.
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Number Of Cooking Element Burners5
Center Rear Element Burner Power100W
Center Rear Element Burner TypeWarming
Left Front Element Burner Size12in./9in.
Cooktop Control LocationBackguard
Left Rear Element Burner TypeHigh Output
Left Rear Element Burner Power1300W
Left Front Element Burner Power3000W/1900W
Right Front Element Burner Power3000W/1400W
Carton Depth29.0"
Carton Height48.75"
Carton Width32.0"
Depth Closed Excluding Handles25.31"
Depth Closed Including Handles27.75"
Gross Weight178.0 lbs.
Height47.13"
Width29.88"
Capacity FT3 (cubic feet)6.4
