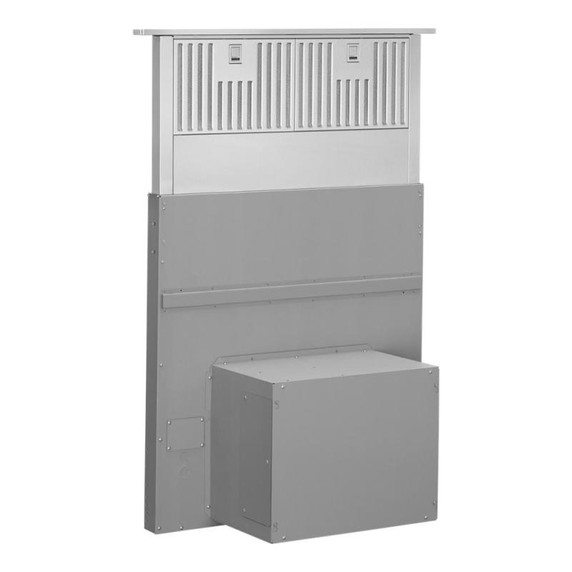

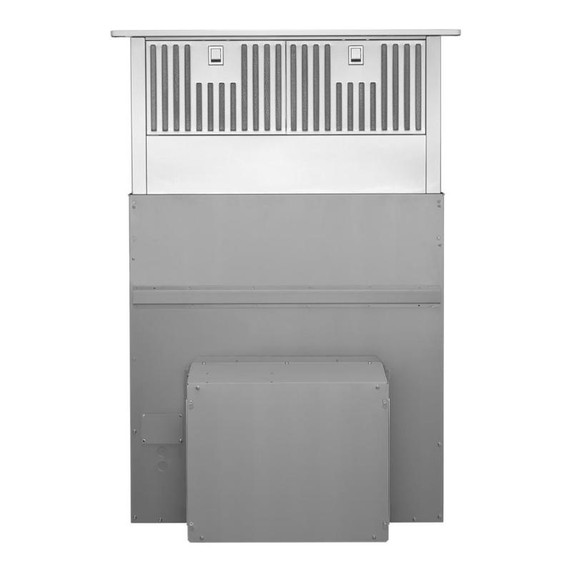

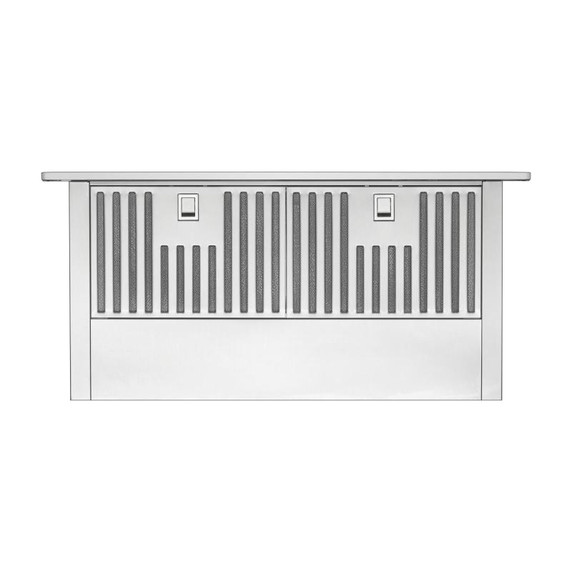

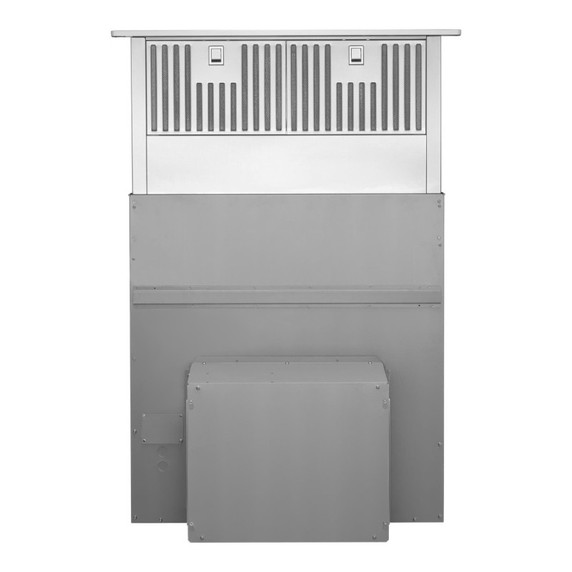

Kitchenaid® 30" Retractable Downdraft System, 600 CFM KXD4630YSS

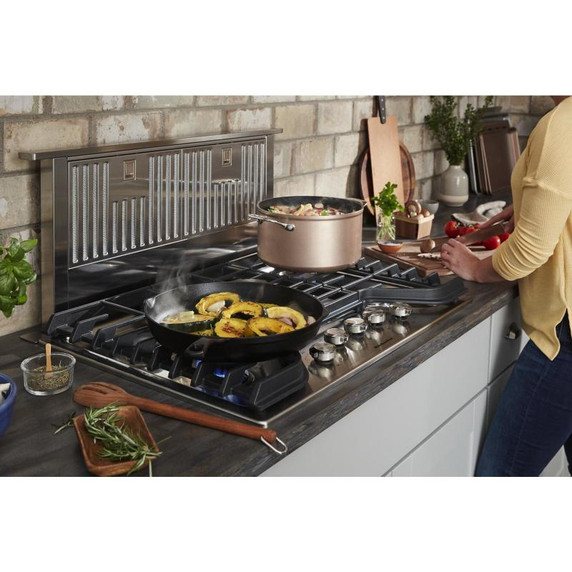

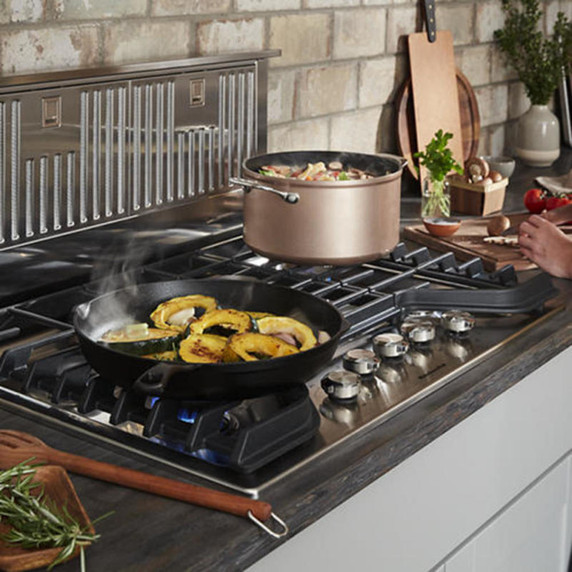

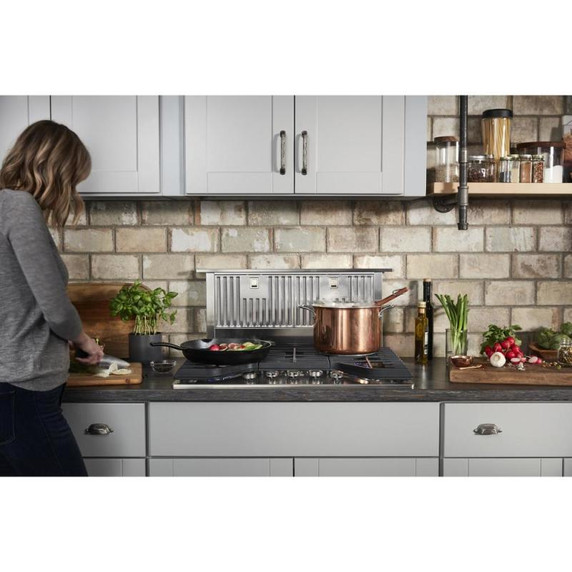

Retractable Downdraft DesignProvides a sleek, integrated ventilation solution by remaining flush with the countertop until needed, then rising high above the cooktop surface when turned on.
65,000 BTU RatingAllows for installation above most 36 or 30-inch cooktops, including some commercial-style cooking surfaces.

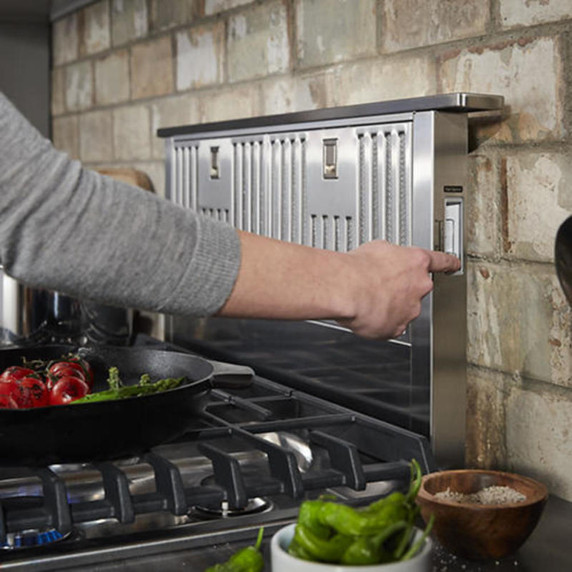

4-Speed Slide ControlMakes it easy to select and adjust fan speed depending on your ventilation requirements.

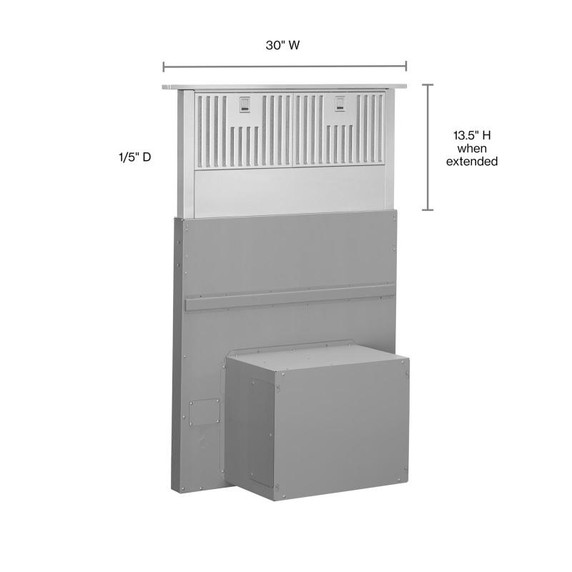

13.5" RiseEnhances overall capture above the cooktop
for more effective venting, particularly over tall stockpots.

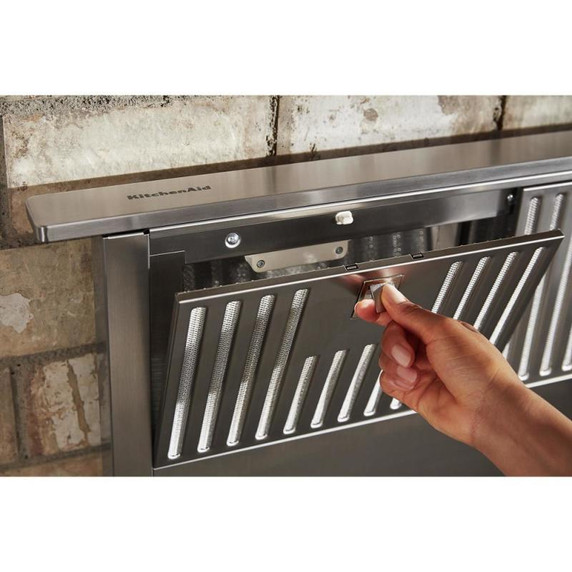

Mesh FiltersHelp keep the kitchen environment fresh and also provide proper filtration of grease and odors to help reduce contact with ceilings and countertops.

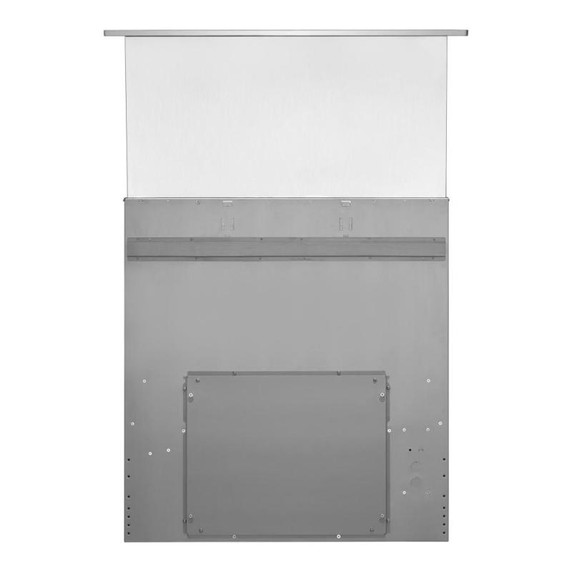

Reversible Motor BoxLets you create versatile installation options by allowing the motor box to be installed on either side of the downdraft to free up the space beneath the cooking surface.
30" Retractable Downdraft SystemThis 30-inch retractable downdraft vent rises 13.5 inches to help filter steam from tall stockpots, and remains flush with the cooking surface when not in use. The 585 CFM Motor Class ventilation system has the power to provide effective venting for most cooktops. The vent system is reversible to help fit in the cabinet space under the vent.
Controls
Control LocationHidden
Control TypeManual
Electrical
Volts120
Hz60
Amps15
Specifications
Country Of OriginMexico
Optional AccessoriesW10446915
Extended Service Plan ParentEW07IW4Y, EW07IW2Y, EW07IW1Y
Product To Product PairsKCES550HSS, KCIG550JBL, KCGS550ESS, KCIG550JSS, KCGS950ESS, KCES950KSS, KCES950KBL, KCES550HBL, KCGS350ESS
Certifications
ULYes
Description
Size In30
Hood TypeRetractable Downdraft
Ventilation System
Cfm Motor Class585
Duct DirectionVertical
Duct Outlet Size In6
Duct TypeRound
FiltersGrease Filters
VentingExterior
Sound Max Speed Sones7.9
Carton Depth33.5"
Carton Height21.0"
Carton Width35.0"
Depth12.13"
Gross Weight93.0 lbs.
Height28.5"
Width27.0"
