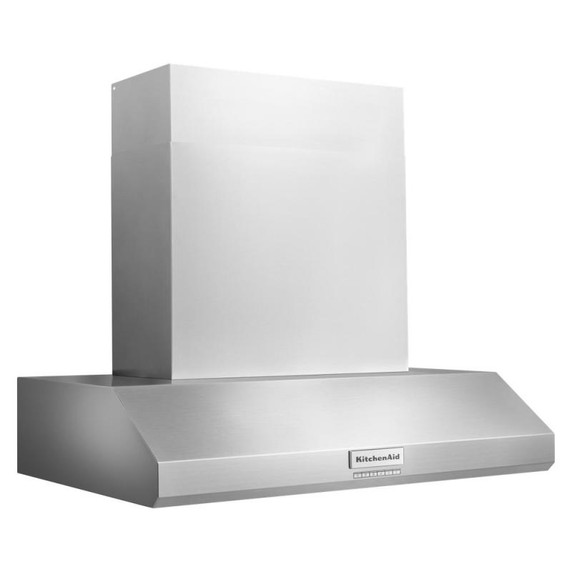

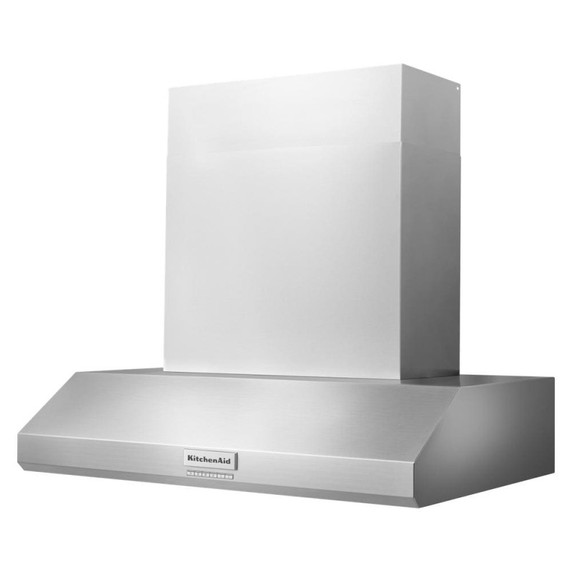

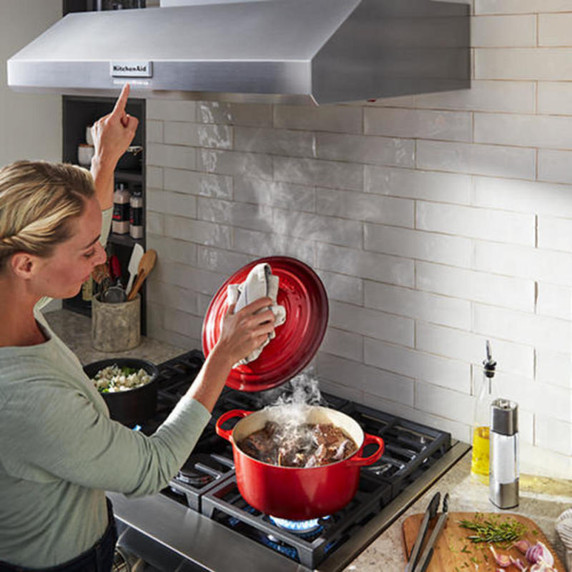

Kitchenaid® 36" 585 or 1170 CFM Motor Class Commercial-Style Wall-Mount Canopy Range Hood KVWC956KSS
KitchenAid
Kitchenaid® 36" 585 or 1170 CFM Motor Class Commercial-Style Wall-Mount Canopy Range Hood KVWC956KSS
Four-Speed FanFeatures low, medium, high and power boost settings, so you can choose the right fan speed for every cooking adventure, from gentle simmering to high-heat searing.
Power Boost FunctionAssists high-heat cooking by activating maximum fan speed for five minutes to help quickly clear smoke and steam. This function turns on automatically if the hood's sensor detects high-heat cooking on multiple burners and can also be activated manually.
Requires 585 or 1170 CFM Motor Class - Sold SeparatelyAllowing you to customize a powerful ventilation system with your choice of commercial-style blowers
105,000 BTU RatingPairs with KitchenAid® Commercial-Style Ranges, Rangetops and other models with total burner outputs up to 105,000 BTU.
Automatic Turn OnProvides intuitive assistance to help keep smoke and steam from building up in the kitchen. If the hood's sensor detects high-heat cooking on multiple burners while the controls are off, it will automatically turn on the fan and set it to Power Boost.

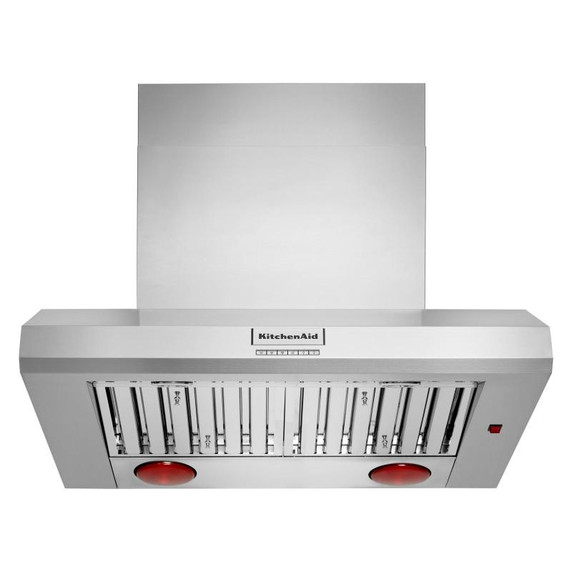

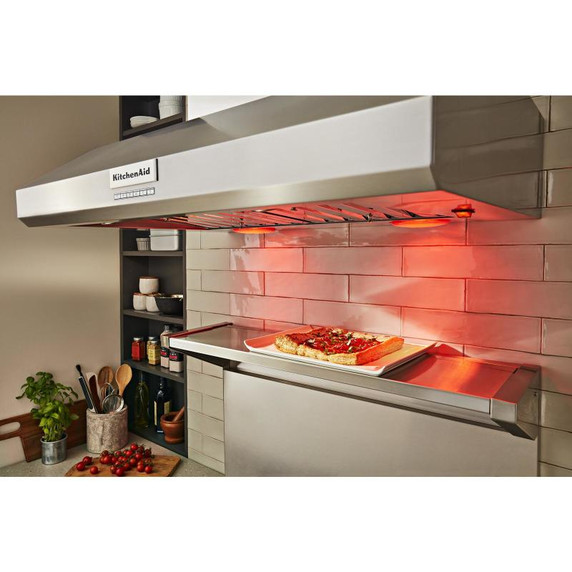

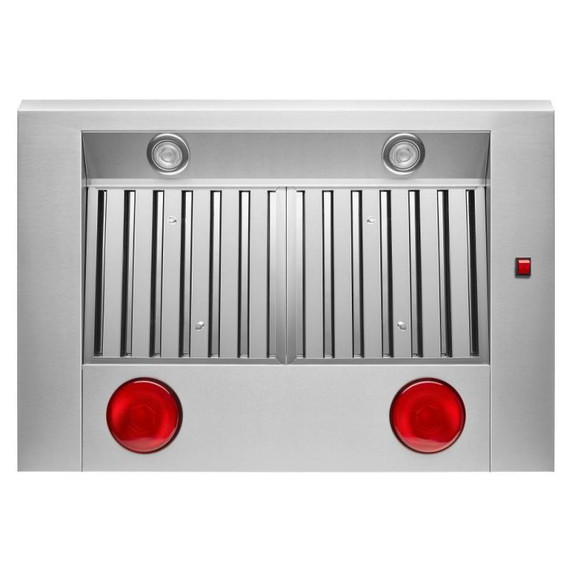

Two Food Warming LampsRadiate heat downwards to hold cooked items at serving temperature for up to an hour, allowing you to focus on other steps in your creative process or finish one dish while another rests.
Two LED Lights with Night Light SettingProvide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.

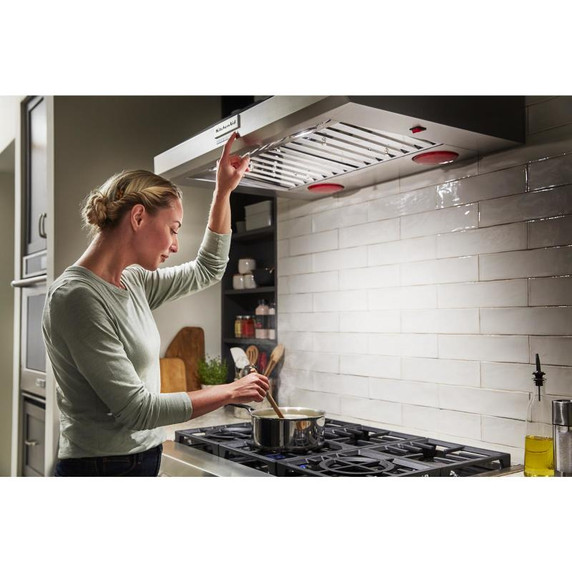

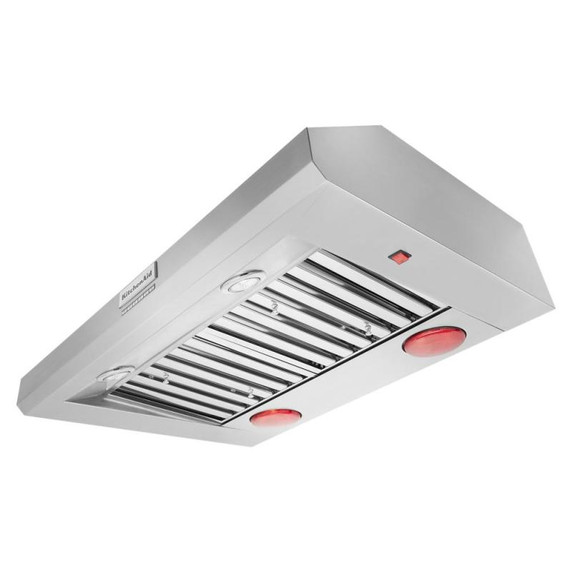

Dishwasher-Safe Commercial-Style Baffle FiltersRemove grease to keep up with high-heat cooking techniques and feature a durable, easy-to-clean design.

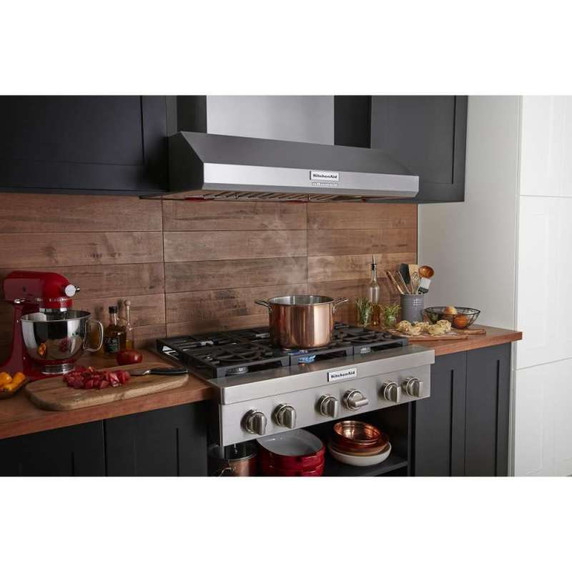

KitchenAid® Commercial-Style VentilationKitchenAid® Commercial-Style Ventilation Hoods equip your kitchen with powerful ventilation designed to match the performance and styling of KitchenAid® Commercial-Style Ranges and Rangetops.

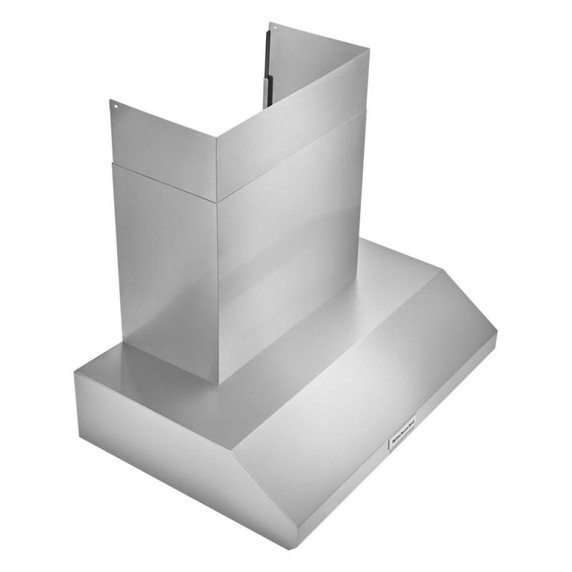

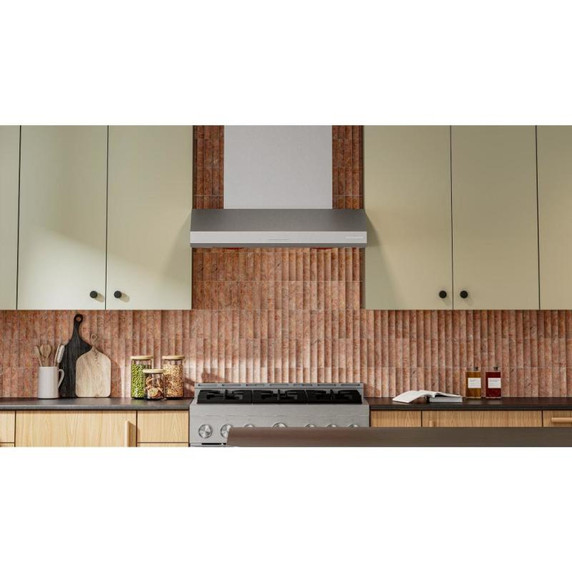

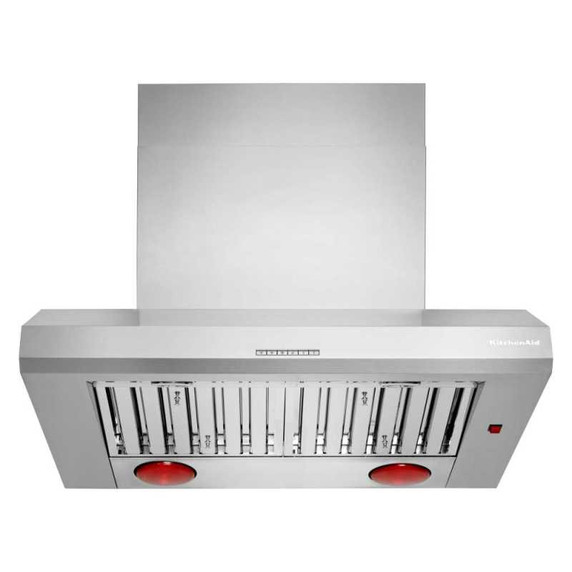

KitchenAid® Commercial-Style Wall-Mount Canopy HoodsKitchenAid® Commercial-Style Wall-Mount Canopy Hoods add industrial style with the bold look of stainless steel. Choose from models featuring an exposed chimney or hidden ductwork.

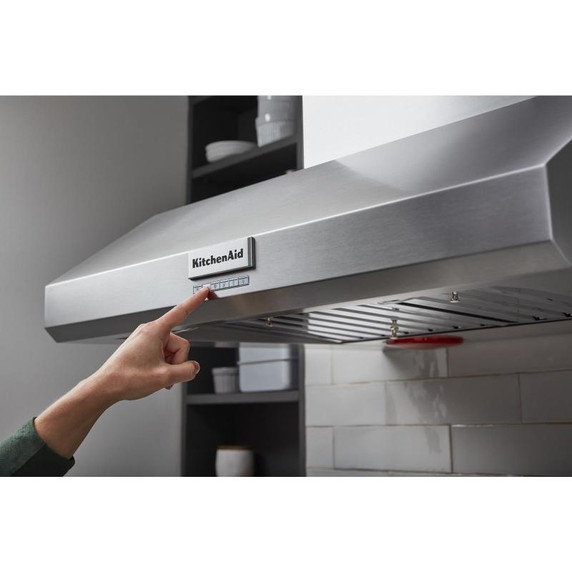

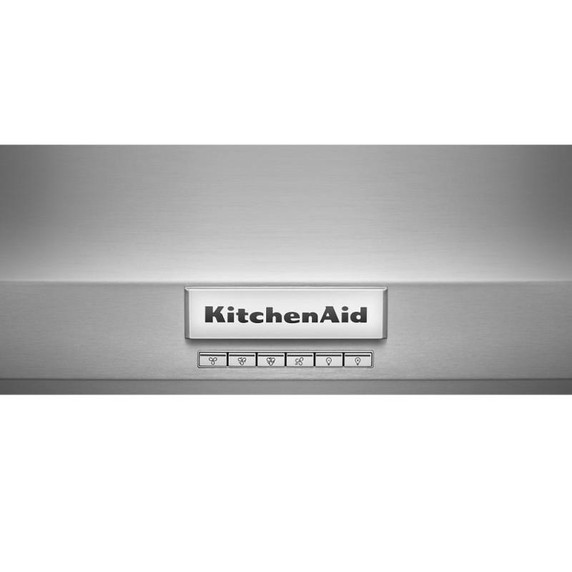

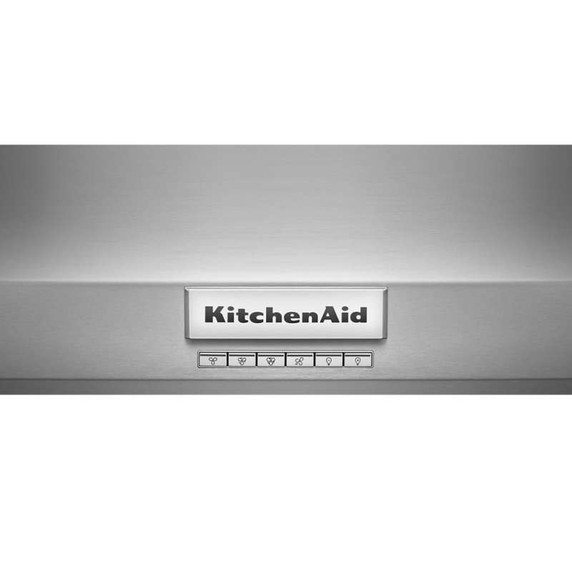

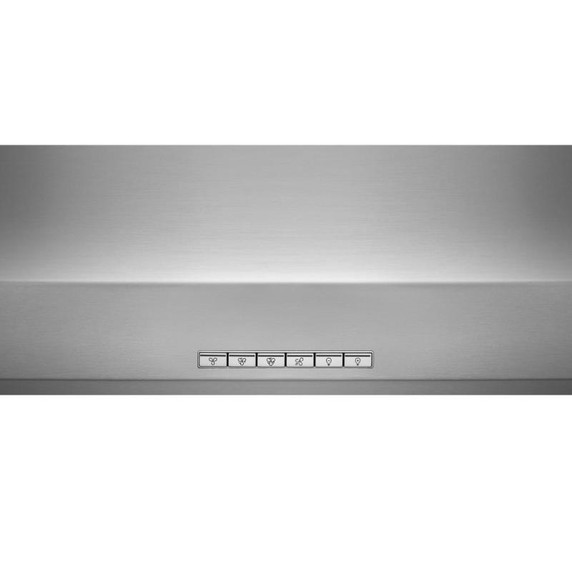

Controls
Control TypeManual
Control LocationFront
Electrical
Volts120
Hz60
Amps6.8000002
Specifications
Country Of OriginMexico
Required AccessoriesUXB0585KYS, UXB1170KYS, UXI1200DYS
Extended Service Plan ParentEW08IW2Y, EW08IW1Y, EW08IW4Y
Optional AccessoriesEXTKIT20ES, EXTKIT04ES, W10285448
Product To Product PairsKFGC506JYP, KFDC506JAV, KFDC506JYP, KFDC506JSC, KFGC506JBK, KFGC506JAV, KFDC506JSS, KFGC506JMB, KFDC506JIB, KFGC506JSC, KFDC506JBK, KFDC506JMH, KFGC506JSS, KFDC506JMB, KFDC506JPA, KFGC506JIB, KFGC506JPA, KFGC506JMH, KCGC506JSS
Features
Night LightYes
Task Light TypeLED
Task LightingYes
Auto OnYes
Btu Threshold90K/105K
Night Light TypeLED
Certifications
ULYes
Energy Star QualifiedNo
Description
Size In36
Hood TypeWall Mount
Ventilation System
Duct DirectionVertical
Duct TypeRound
Auto FunctionYes
VentingExterior
Duct Outlet Size In10
FiltersRemovable Stainless Steel Baffle Filters
Blower MotorNo, Optional Accessory
Duct Length13.0
Exhaust Vent LocationTop
Sound Max Speed Sones12.5
Carton Depth30.0"
Carton Height24.0"
Carton Width41.0"

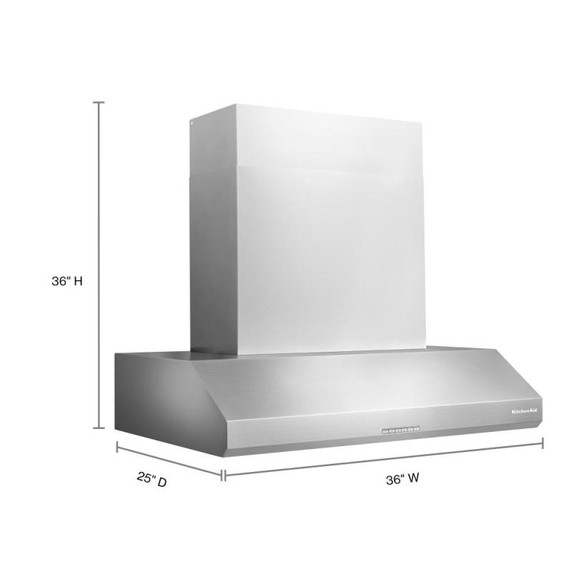

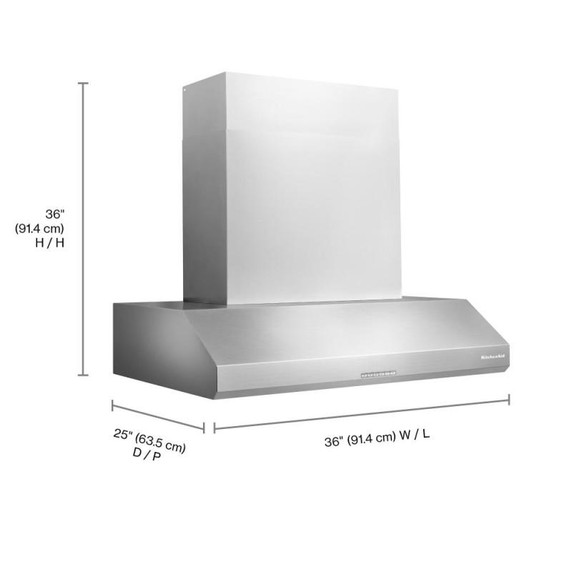

Depth25.0"
Gross Weight35.0 lbs.
Height24.5"
Maximum Height36.0"
Width36.0"
