Kitchenaid® 36" Wall-Mount, 3-Speed Canopy Hood KVWB406DSS

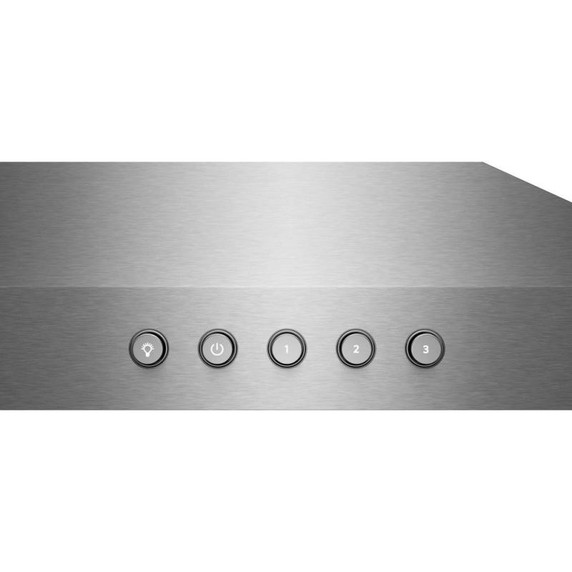

3-Speed Back-Lit Push Button Fan ControlPush-button controls make it easy to select and adjust fan speed depending on your ventilation requirements.
Removable FiltersUse multiple layers of screening to help capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water.

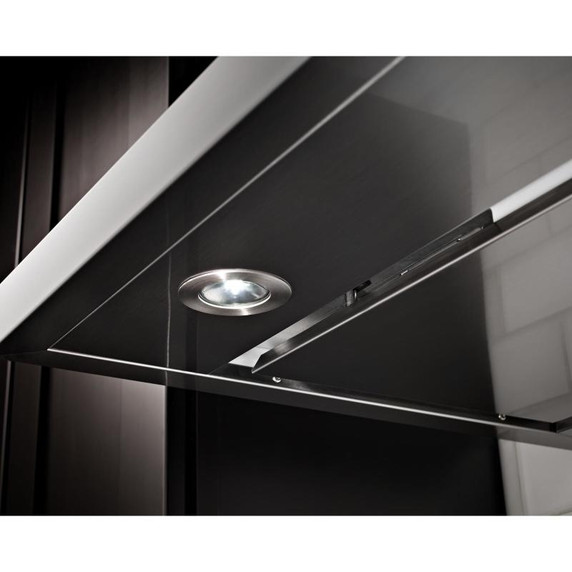

Two LED Task Lightsilluminate the entire cooking surface below with natural-looking light.
Perimeter VentilationPairs with any 30-inch and 36-inch range or cooktop with a total burner output up to 65,000 BTU
Easy In-line ConversionConverts from a traditional set-up to an in-line blower installation for an even more quiet operation. Metal box purchase required.
65,000 BTU RatingPairs with any 30-inch and 36-inch range or cooktop with a total burner output up to 65,000 BTU.
400 CFM Motor Class Ventilation SystemHelps capture smoke, grease and odors from the cooking surface below for everything from simmering to high temperature cooking techniques like pan searing and stir-frying so you can experiment with confidence.
Controls
Control TypeManual
Electrical
Volts120
Amps15
Specifications
Country Of OriginMexico
Extended Service Plan ParentEW06IW4Y, EW06IW1Y, EW06IW2Y
Product To Product PairsKCIG556JSS, KCES556HSS, KCES956KSS, KCES556HBL, KCGS556ESS, KCIG556JBL, KCGS956ESS, KCES956KBL
Optional AccessoriesW10272063, W10272068, EXTKIT18FS, W10446915, W10692945
Features
Night LightYes
Task Light TypeLED
Task LightingYes
Night Light Type
Certifications
ULYes
Description
Size In36
Hood TypeWall Mount
Ventilation System
Duct DirectionVertical
Duct Outlet Size In6
Duct TypeRound
FiltersGrease Filters
VentingExterior or Recirculating
Cfm Motor Class400
Carton Depth15.0"
Carton Height26.5"
Carton Width40.0"

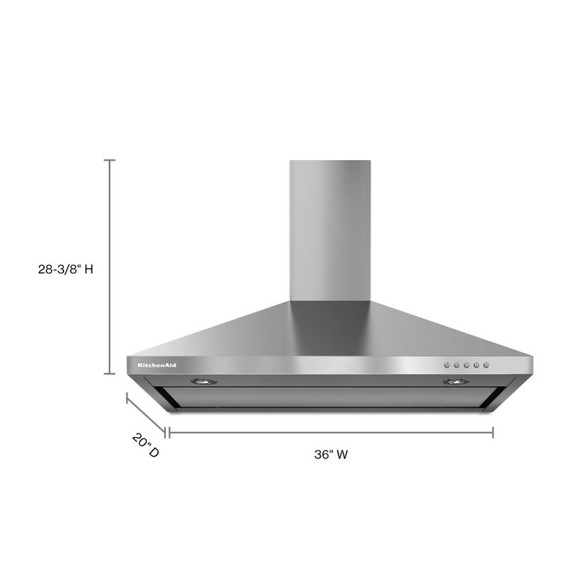

Depth20.0"
Gross Weight48.46 lbs.
Height28.88"
Width36.0"
