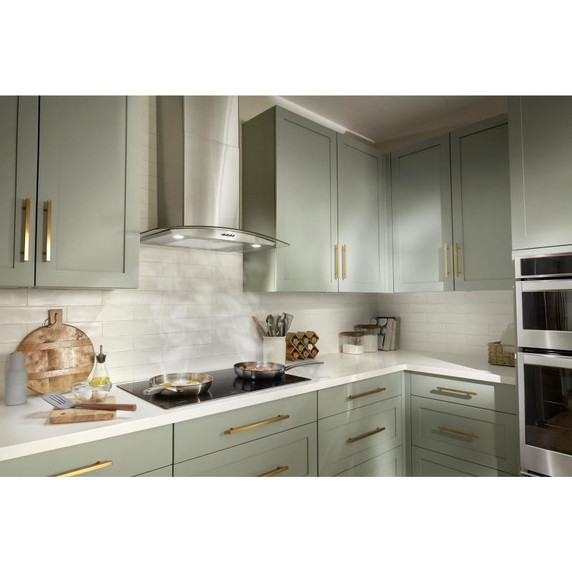

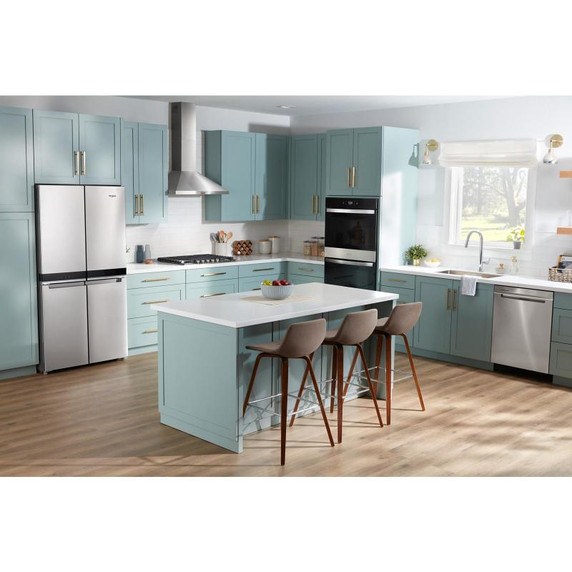

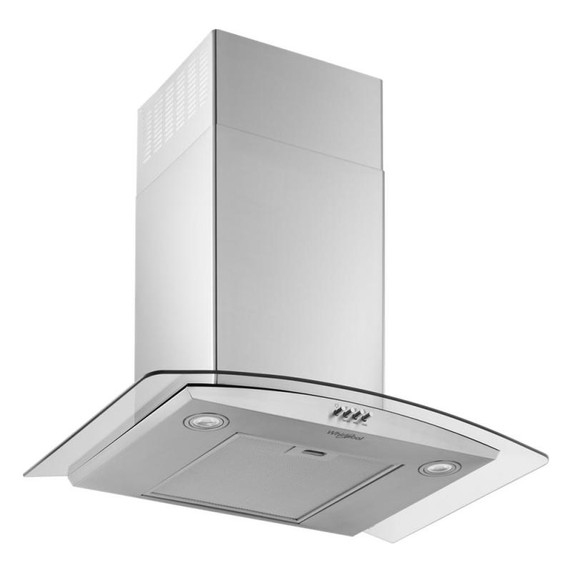

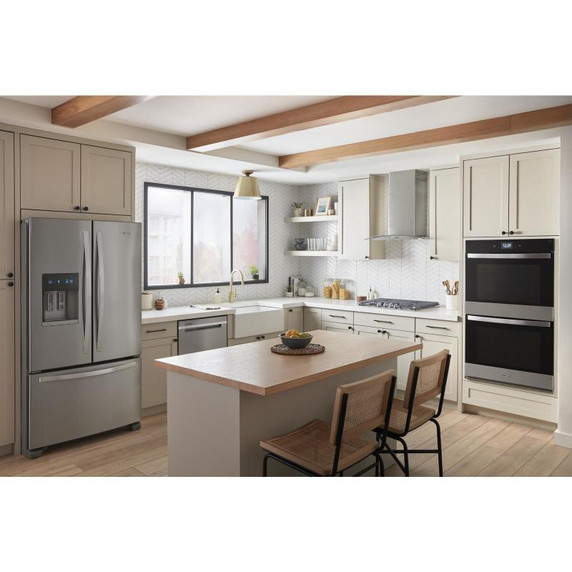

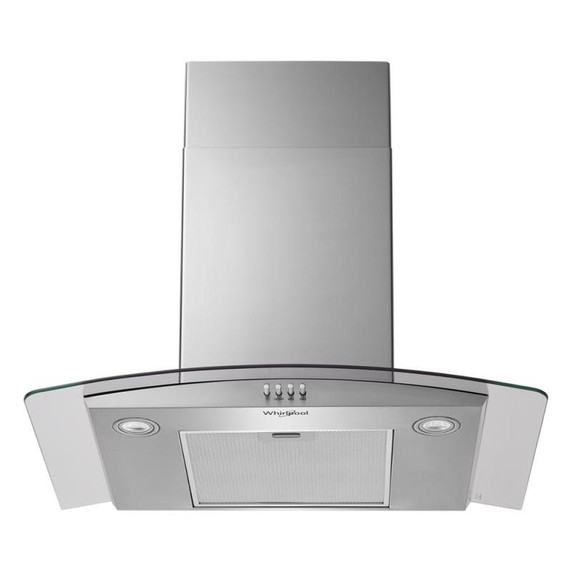

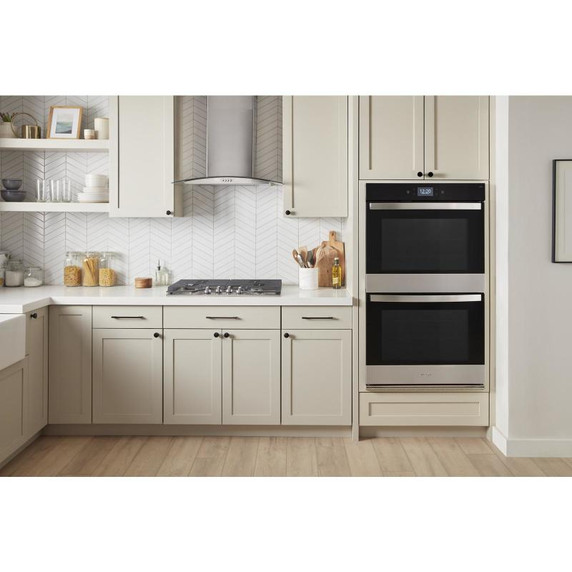

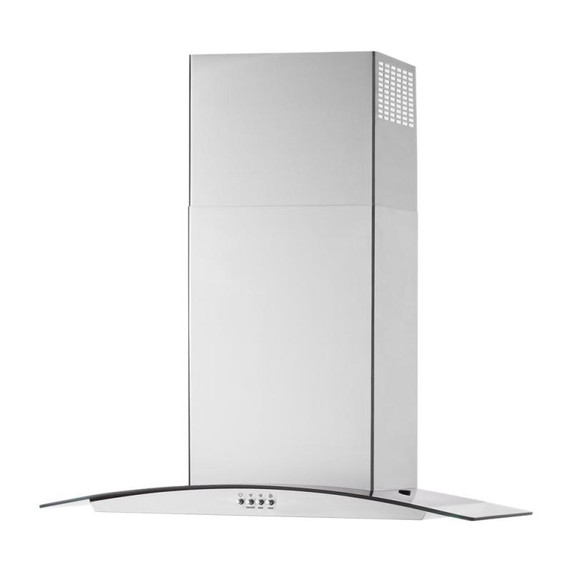

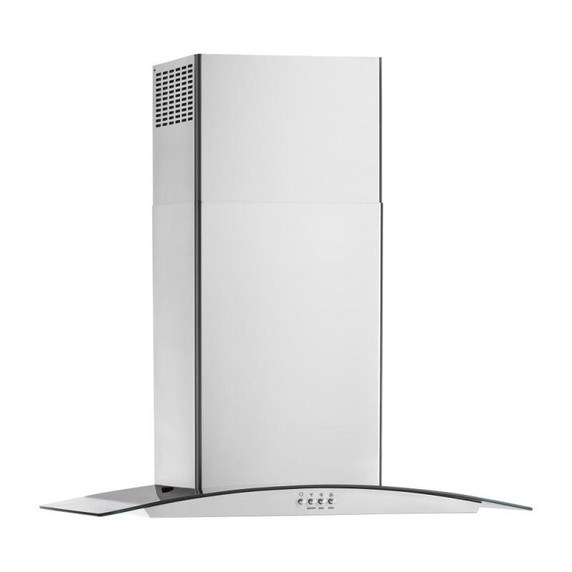

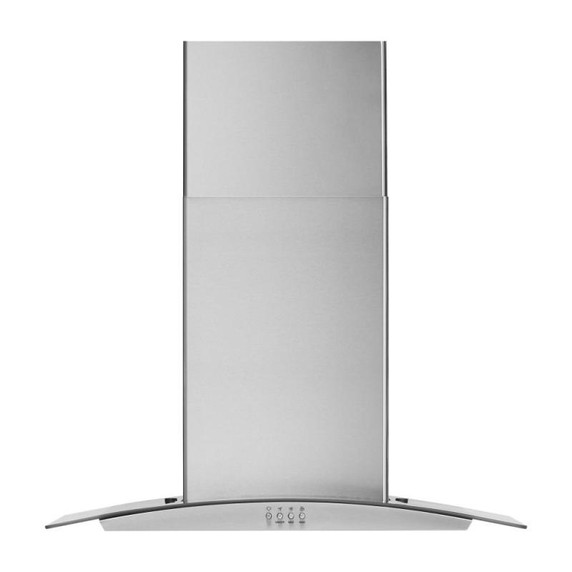

Whirlpool® 30" Curved Glass Wall Mount Range Hood WVW51UC0LS

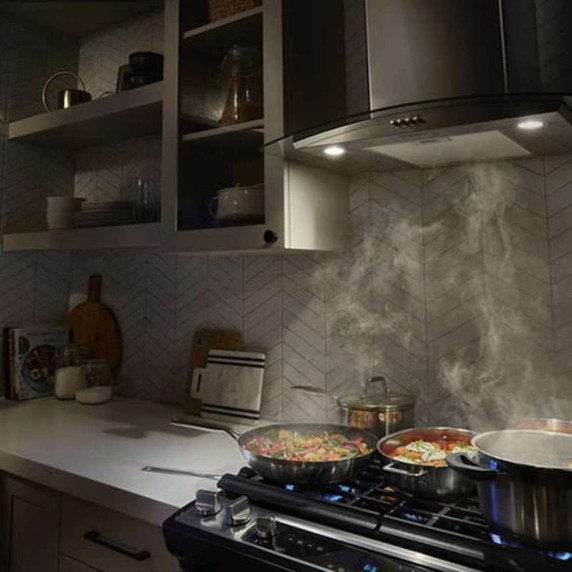

3-Speed, 400 CFM Motor Class (Performance varies based on installation. Resources available at aham.org.)Helps remove smoke, odor and moisture with 400 CFM Motor Class hood venting that helps keep your kitchen clean. Three fan speeds provide the right amount of ventilation for every meal you prepare.

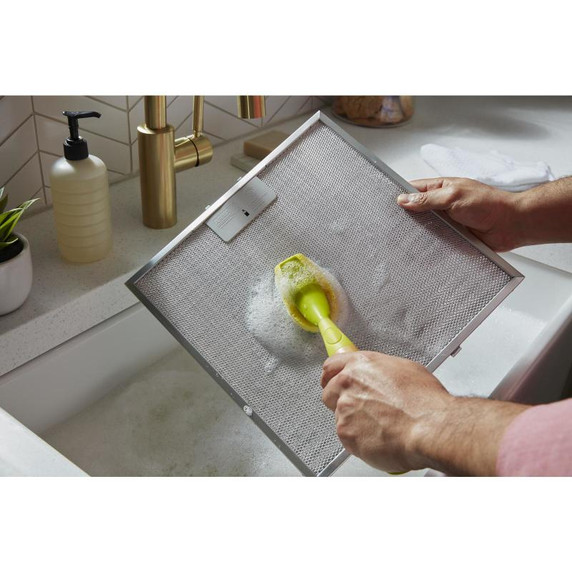

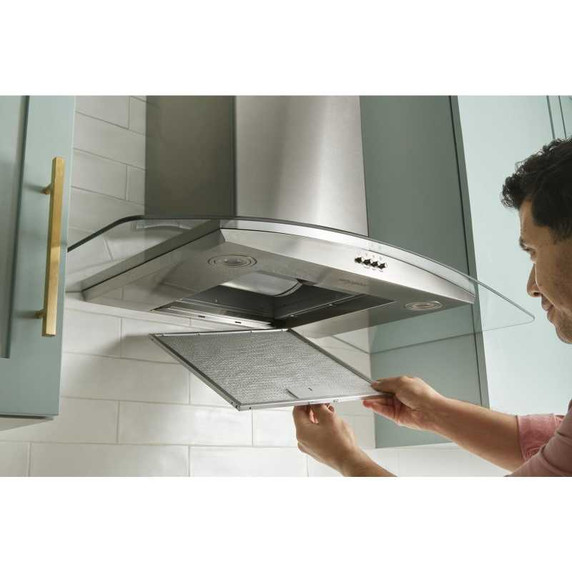

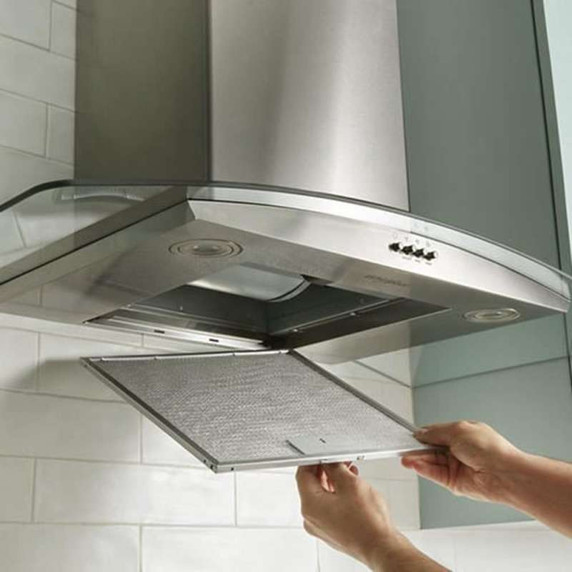

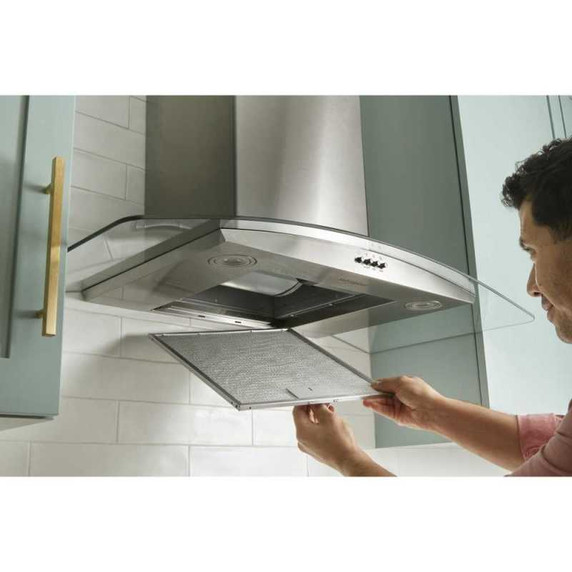

Grease FilterHelp trap unwanted grease and remove odors with a filter that unlatches from the hood so you can wash it with soap and water at the sink.

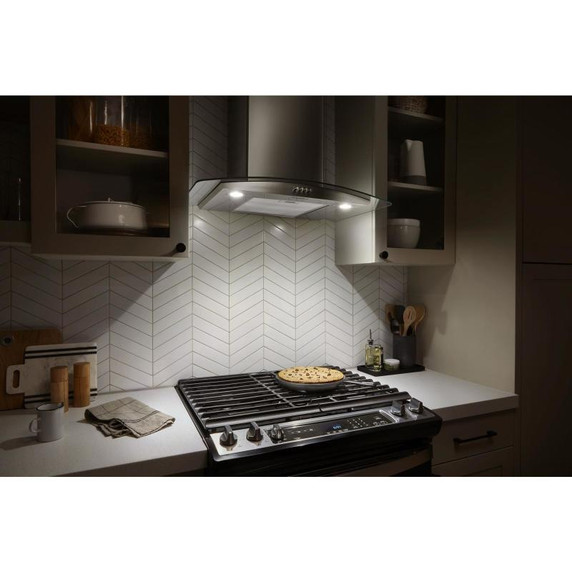

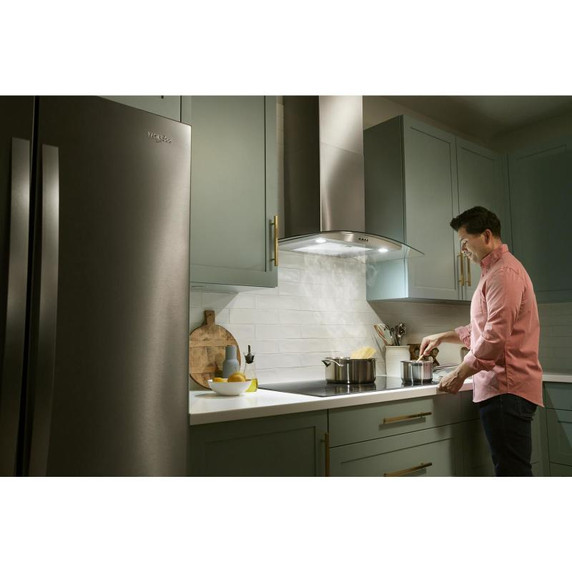

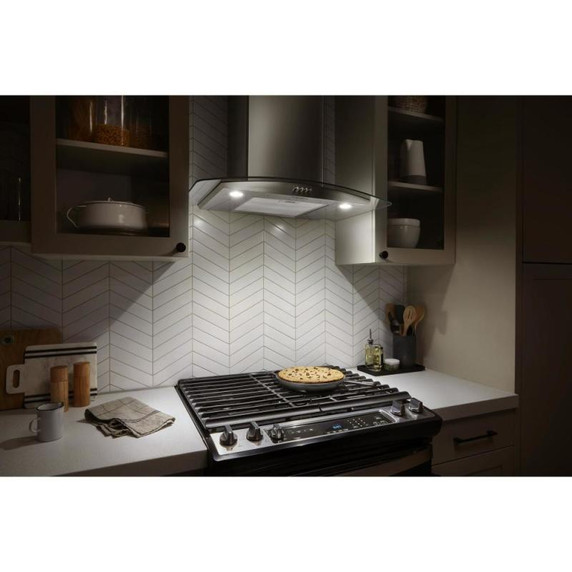

LED Task LightingBright, long-lasting LED Task Lighting makes it easy to see what you’re cooking.

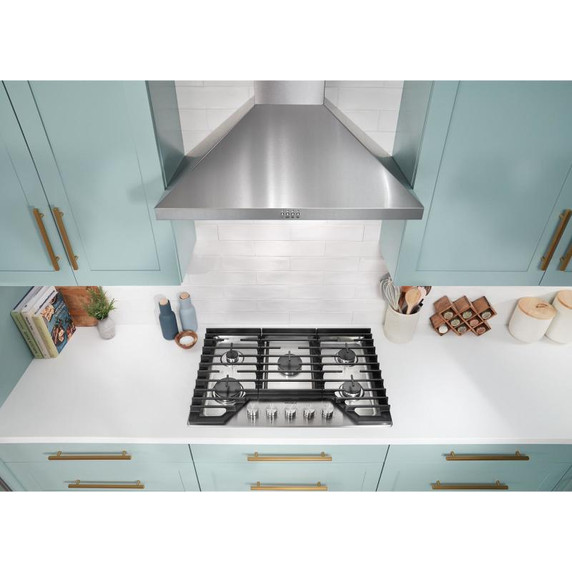

65K BTU Cooktop ThresholdHandle the heat and cooking power of a gas cooktop with up to 65K total BTUs or any electric cooktop.
7 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org.)Stay focused on cooking and making memories in the kitchen, even when venting at the highest speed. At maximum speed, sound level is 7 Sones.

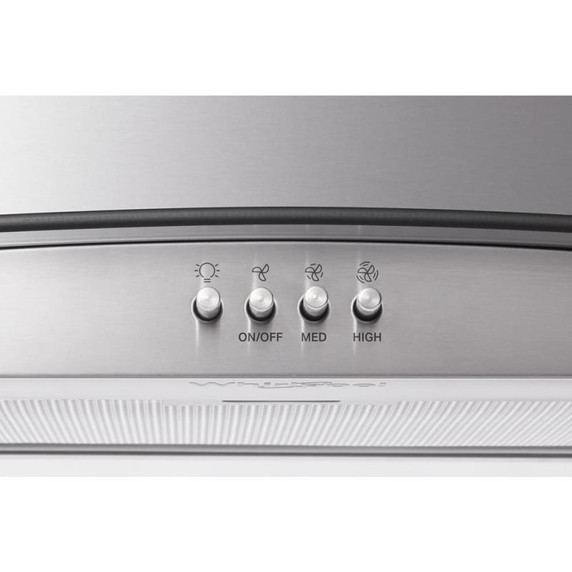

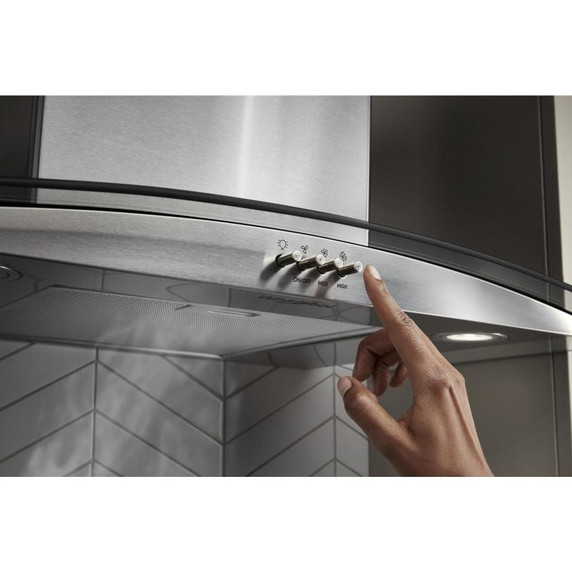

Push Button ControlsUse Push Button Controls to easily control fan speed and cooktop lighting at the push of a button.
ADA CompliantWhen the range hood is wired to operate from a dedicated standard electrical wall switch, this hood meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all. See install instructions for ADA compliance for more details.
Convertible Ventilation (Recirculating or Vented)Vent vapors and odors outside or filter them and recirculate the air, depending on your kitchen's setup.
Optional Recirculation Kit (non-vented/duct-free)This hood can be installed without needing to vent outside. Recirculation passes the air through filters to trap grease and odors before pushing the air back into the home. Recirculation kit sold separately. Part number W11548457.
6" Round Damper IncludedHelp regulate the flow of air through the chimney with the included 6" round damper (part number W10446915).
Optional Chimney Extension KitExtend chimney height for ceilings from 8'4" to 12'4" with the Optional Chimney Extension Kit. See installation instructions for details. Optional Chimney Extension Kit sold separately. Part number EXTKIT10ES.
Controls
Control TypeManual
Control LocationFront
Electrical
Volts120
Hz60
Amps2
Specifications
Country Of OriginMexico
Extended Service Plan ParentEW04IW4Y, EW04IW1Y, EW04IW2Y
Optional AccessoriesW10446915, EXTKIT10ES, W11548457
Product To Product PairsYWEE745H0LZ, YWEE515S0LV, WCE77US0HB, WCE97US0KB, WCE77US0HS, YWEE750H0HZ, WEGA25H0HZ, WCE55US0HS, WEG515S0LS, YWEE515S0LS, YWFE515S0JS, YWEEA25H0HZ, WEG750H0HV, WEG750H0HB, YWFC150M0JW, WEG750H0HZ, YWFE745H0FS, WCE97US0KS, WEG750H0HW, YWEE515S0LW, WEG515S0LV, YWFC315S0JW, YWEE515S0LB, YWEE750H0HB, WGG745S0FS, YWEE750H0HV, YWFE745H0FH, YWFC150M0JB, WCE55US0HB, YWFC315S0JS, WCI55US0JB, YWGE745C0FS, YWEE750H0HW, WCI55US0JS
Features
Task Light TypeLED
Task LightingYes
Night LightNo
Night Light Type
Btu Threshold65 K
Auto OnNo
Certifications
ULYes
Energy Star QualifiedNo
Description
Size In30
Hood TypeWall Mount
Ventilation System
Duct DirectionVertical
Duct Outlet Size In6
Duct TypeRound
VentingExterior or Recirculating
Exhaust Vent LocationTop
Cfm Motor Class400
Auto FunctionNo
FiltersAluminum Mesh Filter
Duct Length45.5
Blower Motor
Sound Max Speed Sones7
Carton Depth17.5"
Carton Height25.5"
Carton Width34.0"

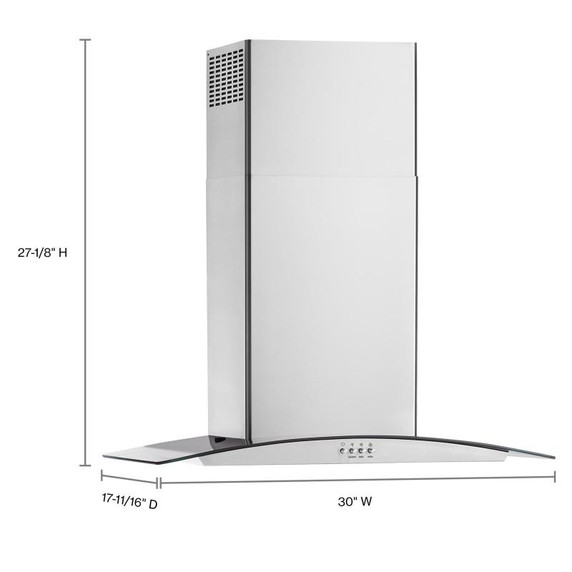

Depth17.69"
Gross Weight46.0 lbs.
Maximum Height45.13"
Minimum Height27.13"
Width30.0"
