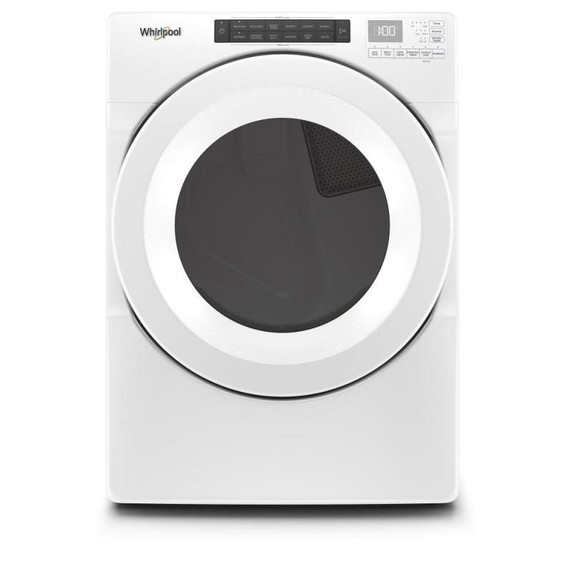

Whirlpool® 7.4 cu. ft. Front Load Electric Dryer with Intuitive Touch Controls YWED560LHW
Whirlpool
Whirlpool® 7.4 cu. ft. Front Load Electric Dryer with Intuitive Touch Controls YWED560LHW
Advanced Moisture SensingHelp prevent overdrying. Three sensors track moisture and temperature, adapting drying times to end the cycle at just the right time.
Wrinkle Shield™ OptionHelp keep wrinkles from setting into clean, dry fabrics with the Wrinkle Shield™ Option. It keeps clothes tumbling for up to 150 minutes after the cycle ends or until you open the door.
7.4 cu. ft. CapacityGet plenty of room to dry the large loads you washed in the matching front load washer. This 7.4 cu. ft. dryer easily handles bulky items like comforters and sleeping bags.

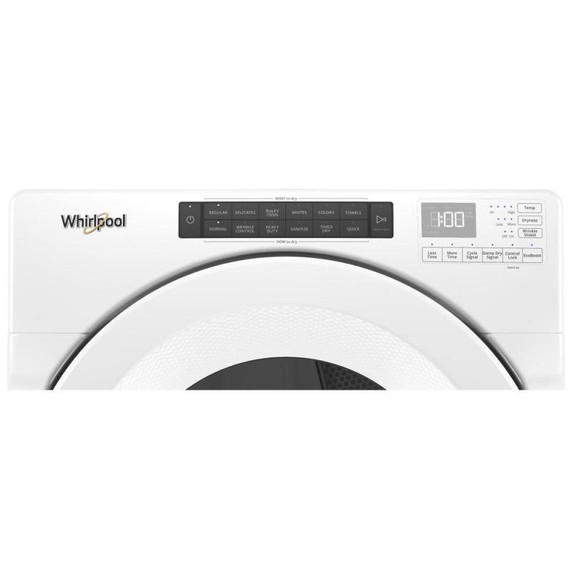

Intuitive ControlsLet the dryer guide you to the right cycle combinations or customize up to 36 of your own to get the right type of fabric care for whatever you're drying.
Quad BafflesFour baffles tumble clothes in a randomized pattern, allowing items to open up freely. This helps increase the effectiveness of the dryer for small loads.
Specifications
Country Of OriginUSA
Top Load MatchingNo
Front Load MatchingYes
Product To Product PairsWFW560CHW
Extended Service Plan ParentEW05IW4Y, EW05IW2Y, EW05IW1Y
Optional AccessoriesW10869845, WFP2715HW, W10323246, W10322470A
Electrical
Hz60
Volts240
Amps30
Certifications
ULYes
Energy Star QualifiedYes
Controls
Control TypeElectronic
End Of Cycle SignalYes
Control LocationFront Console
Feedback Status IndicatorsSensing; Cool Down; Wet; Damp; Check Vent
Configuration and Overview
Fuel TypeElectric
Details
Hoses IncludedNo
Drum MaterialPowder Coat
Lint Screen LocationFront
Maytag Commercial ComponentsNo
Drying RackNo
Quad BafflesYes
Exterior
WindowYes

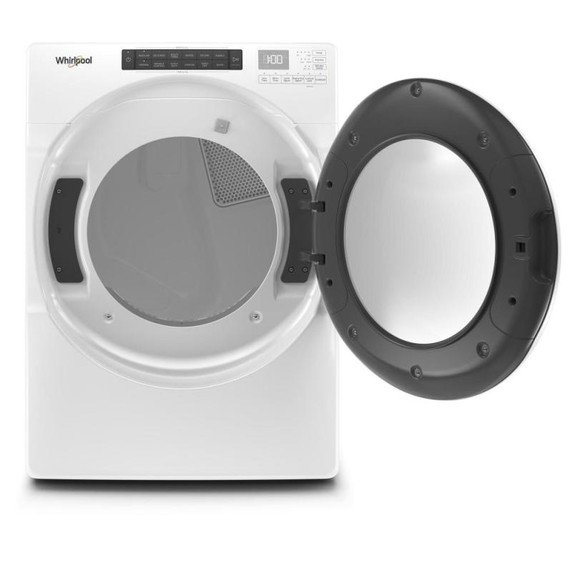

Door StyleSide Swing
Reversible DoorYes
Cycles and Options
Cycle Time RemainingYes
Features
Automatic Dry ControlYes
Moisture SensorYes
StackableYes
Lint Filter IndicatorNo
Modifiers
Number Of Dryness Levels3
Selection Of Drying LevelsLess; More; Normal
Cycles
Number Of Dryer Cycles36
Drying Cycles SelectionsBulky Items; Colors; Delicates; Heavy Duty; Normal; Quick Dry; Regular; Sanitize; Timed Dry; Towels; Whites; Wrinkle Control
Installation Considerations
Long VentYes
Maximum Vent Length Ft160
Venting DirectionRight, Bottom, Rear
Temperature Settings
Temperature SelectionAir Only; High; Low; Medium
Options
Dryer Option SelectionsControl Lock; Cycle Signal; Damp Dry Signal; Eco Boost™
Carton Depth31.26"
Carton Height44.96"
Carton Width28.66"
Depth With Door Open 90 Degree54.5"
Depth31.0"
Gross Weight175.0 lbs.
Height38.75"
Width27.0"
Capacity IEC CAN (cubic feet)7.4
